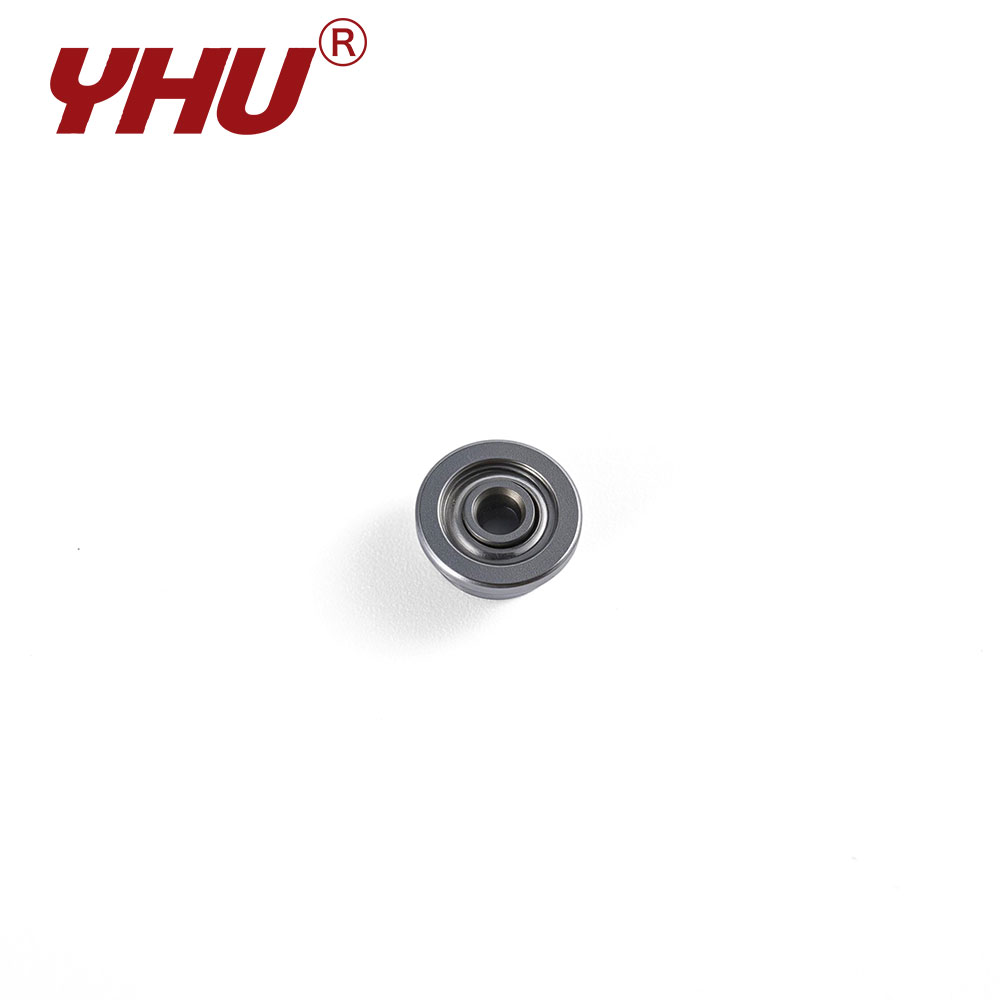

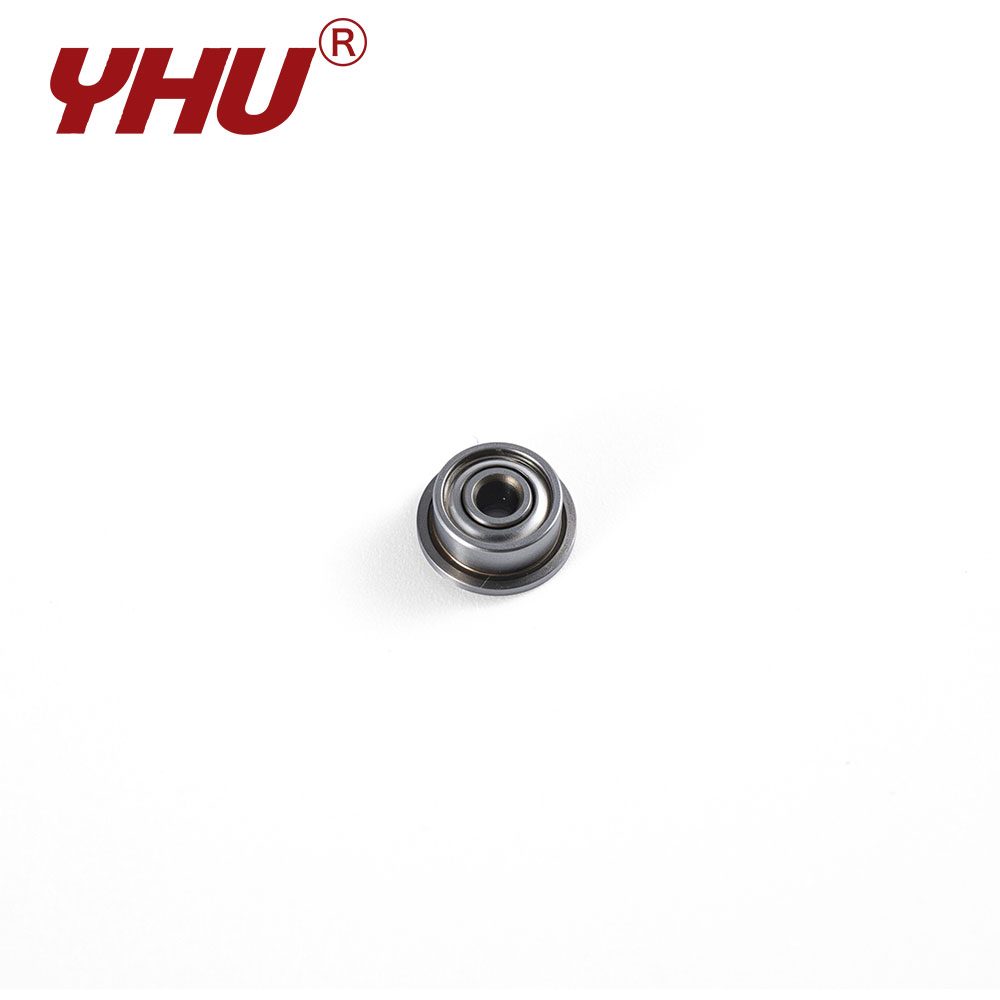

The F60 series represents a product with balanced performance characteristics within the category of metric miniature bearings. Its design focuses on striking a balance between rotational speed capabilities and structural rigidity. The flanged design facilitates precise axial positioning, thereby reducing the risk of off-center operation caused by installation errors.
Bearing Features
In terms of manufacturing, the series typically undergoes high-precision grinding to ensure low-noise and low-vibration operation. These attributes make it well-suited for applications with strict noise requirements, such as dental instruments and small fans. The chemical stability of the bearing steel ensures dimensional integrity across various operating conditions—including environments with mild oil contamination or elevated temperatures—preventing easy deformation and thereby maintaining the operational precision of the equipment.
Technical Specifications
| Bearing Reference | Boundary Diameters | Basic Dynamic | Basic Static | Limiting Speeds | ||||||||||
| Flange | Open | Shield | d mm |
D mm |
Df mm |
B mm |
Bf mm |
B1 mm |
Bf1 mm |
rsmin mm |
Cr(kN) | Cor(kN) | Grease | Oil |
| F | F602 | ZZ | 2 | 7 | 8.5 | 2.8 | 0.7 | 3.5 | 0.9 | 0.15 | 0.382 | 0.127 | 7.3 | 8.2 |
| F | F603 | ZZ | 3 | 9 | 10.5 | 3 | 0.7 | 5 | 1 | 0.15 | 0.568 | 0.186 | 5.5 | 6.2 |
| F | F604 | ZZ | 4 | 12 | 13.5 | 4 | 1 | 4 | 1 | 0.2 | 0.96 | 0.353 | 4.1 | 4.6 |
| F | F605 | ZZ | 5 | 14 | 16 | 5 | 1 | 5 | 1 | 0.2 | 1.33 | 0.51 | 3.5 | 3.9 |
| F | F606 | ZZ | 6 | 17 | 19 | 6 | 1.2 | 6 | 1.2 | 0.3 | 2.26 | 0.843 | 2.9 | 3.2 |
| F | F607 | ZZ | 7 | 19 | 22 | 6 | 1.5 | 6 | 1.5 | 0.3 | 2.33 | 0.892 | 2.5 | 2.8 |
| F | F608 | ZZ | 8 | 22 | 25 | 7 | 1.5 | 7 | 1.5 | 0.3 | 3.29 | 1.38 | 2.2 | 2.5 |
| F | F609 | ZZ | 9 | 24 | 27 | 7 | 1.5 | 7 | 1.5 | 0.3 | 3.33 | 1.42 | 2 | 2.2 |
