Angular Contact Ball Bearings Manufacturer

Jiangsu Yinghong Transmission Technology Co., Ltd. (YHU) manufactures angular contact ball bearings engineered for combined radial and axial load applications where standard deep groove designs cannot deliver the required stiffness or positioning accuracy. Our angular contact range covers bearing steel and stainless steel executions, produced on automated lines with Japanese precision manufacturing technology and verified through a closed-loop quality system.

As an Angular Contact Ball Bearings manufacturer in China, we supply standard series and custom configurations for machine tool spindles, pumps, gearboxes, robotics, medical equipment and semiconductor processing tools. Every bearing is matched to the working point, mounting arrangement and lubrication method defined by your application.

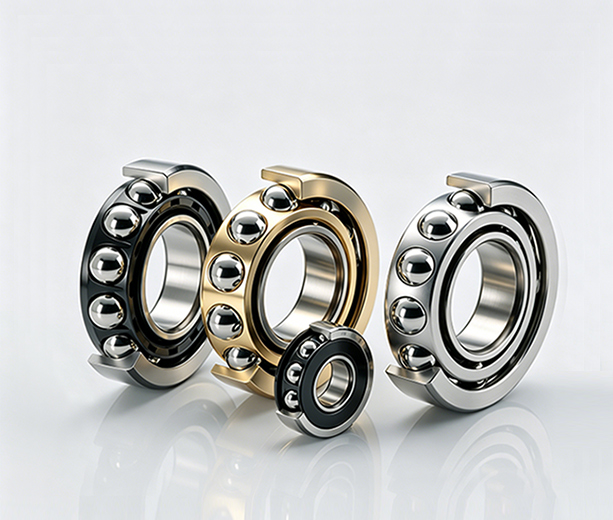

Our Angular Contact Ball Bearing Range

The category is organized into two material families, each available in multiple precision and sealing variants. Both families share the same raceway geometry principles but differ in material properties, corrosion resistance and operating temperature range.

Application Fit and Operating Conditions

Angular contact ball bearings are specified when the application demands high axial stiffness, precise shaft positioning or the ability to carry combined loads at elevated speeds. We match the bearing material and configuration to the operating environment, not the other way around.

• Machine tool spindles – bearing steel angular contact bearings in paired arrangements for axial and radial stiffness
• Pumps and compressors – stainless steel variants where process media or washdown environments require corrosion resistance
• Robotics and servo drives – compact angular contact configurations for positioning accuracy and repeatability
• Medical and semiconductor equipment – SUS304 or SUS316 stainless steel for cleanroom compatibility and chemical resistance
• Food processing and marine equipment – stainless steel grades that withstand humidity, chlorides and aggressive cleaning agents

Critical Specifications and Performance

The contact angle is the defining parameter of an angular contact ball bearing. It determines the axial load capacity, the axial stiffness and the speed capability of the bearing. Standard contact angles of 15°, 25° and 40° cover the majority of applications, with smaller angles favoring higher speeds and larger angles favoring higher axial load capacity.

Mounting arrangement is equally critical. Back-to-back (DB) arrangements provide higher stiffness against moment loads, face-to-face (DF) arrangements accommodate shaft expansion, and tandem (DT) arrangements combine axial load capacity in one direction. We configure the bearing set based on your load direction and housing design.

Configuration and Engineering Support

We configure each angular contact ball bearing around the working point of your machine. The starting parameters are bore size, outside diameter, width and contact angle. From there we select the cage type, ball complement, sealing arrangement and internal clearance to match the load profile and speed.

Our engineering team supports custom development based on drawings, samples or performance targets. We design and optimize bearing structures, materials and performance parameters for specific industry conditions such as motors, power tools, medical devices, semiconductor equipment and aerospace applications. Prototype production, mass delivery and after-sales technical support are covered as a full-process service. For related precision bearing needs, explore our Deep Groove Ball Bearings range as well.

Quality Assurance and Acceptance

YHU operates a closed-loop quality management system covering raw material warehousing, production processes and finished product delivery. High-precision testing equipment verifies core performance parameters including precision, noise, vibration, sealing, wear resistance and corrosion resistance before any bearing leaves the factory.

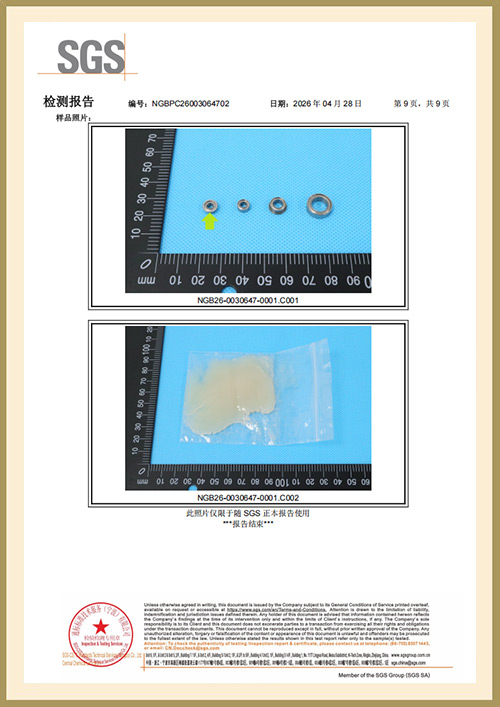

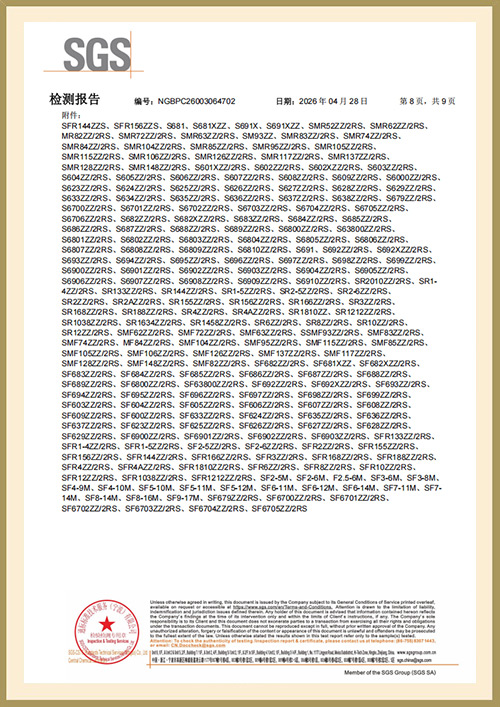

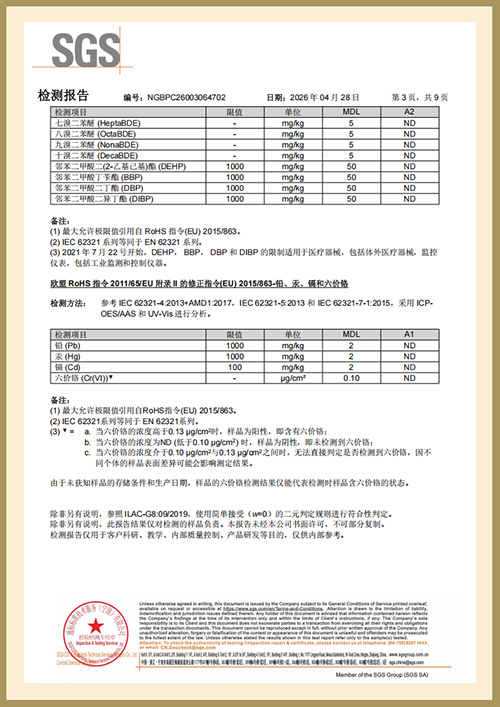

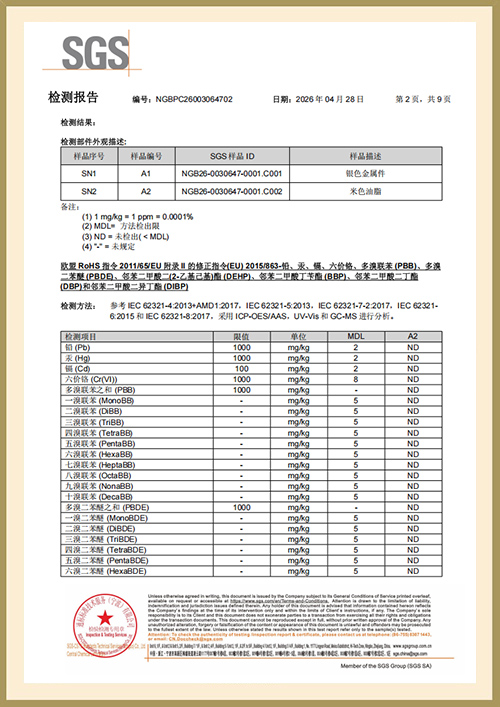

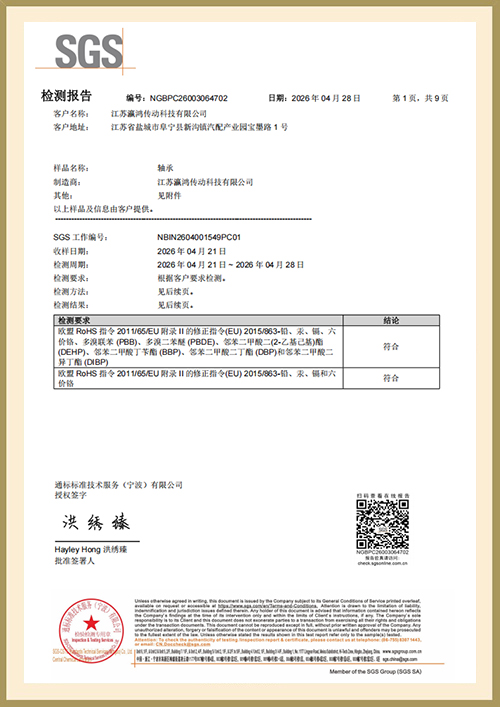

As a National High-Tech Enterprise, we hold multiple invention and utility model patents and maintain IATF 16949, RoHS, CE and SGS certifications. These credentials support automotive, medical, semiconductor and other regulated industries where documented quality evidence is required. Our complete Products catalog reflects the same manufacturing and testing standards across all bearing families.

Information We Use to Configure Your Solution

To prepare a configuration and quotation, we need the following project data:

• Bearing dimensions – bore, outside diameter, width, or the reference bearing number
• Contact angle – 15°, 25°, 40° or a custom angle defined by your application
• Load profile – radial load, axial load, direction and any moment loads
• Speed requirement – operating speed and maximum speed
• Mounting arrangement – single bearing, DB, DF or DT set
• Operating environment – temperature, humidity, chemicals, washdown or cleanroom conditions
• Lubrication – grease type and quantity, or oil lubrication method
• Precision grade – required tolerance class for your application
• Quantity and packaging – annual volume and delivery format

Frequently Asked Questions

What contact angles are available for angular contact ball bearings?

Standard contact angles are 15°, 25° and 40°. A 15° angle provides the highest speed capability and lower axial stiffness, while a 40° angle delivers maximum axial load capacity. We can also produce custom contact angles when the application requires a specific stiffness or load distribution.

How should angular contact ball bearings be mounted?

Angular contact ball bearings are typically used in pairs or multi-bearing sets because a radial load generates an axial component. Back-to-back (DB) arrangements provide high moment stiffness, face-to-face (DF) arrangements accommodate thermal expansion, and tandem (DT) arrangements combine axial capacity in one direction. We recommend the arrangement based on your housing design and load direction.

What is the difference between bearing steel and stainless steel angular contact bearings?

Bearing steel offers higher hardness and load capacity in standard industrial environments. Stainless steel grades such as SUS420 and SUS440 provide corrosion resistance with hardness close to bearing steel, while SUS304 and SUS316 offer non-magnetic properties and enhanced chemical resistance. The choice depends on the operating environment and the required service life.

Can you produce non-standard angular contact ball bearings?

Yes. We support custom development based on drawings, samples or performance targets. Our engineering team can optimize bearing structure, material selection and performance parameters for specific applications, and we handle prototype production through mass delivery as a full-process service.

What quality documentation do you provide with shipments?

We operate under IATF 16949, RoHS, CE and SGS certifications. Each shipment is verified through our closed-loop quality system, and we can provide inspection reports covering precision, noise, vibration, sealing and corrosion resistance performance parameters.
