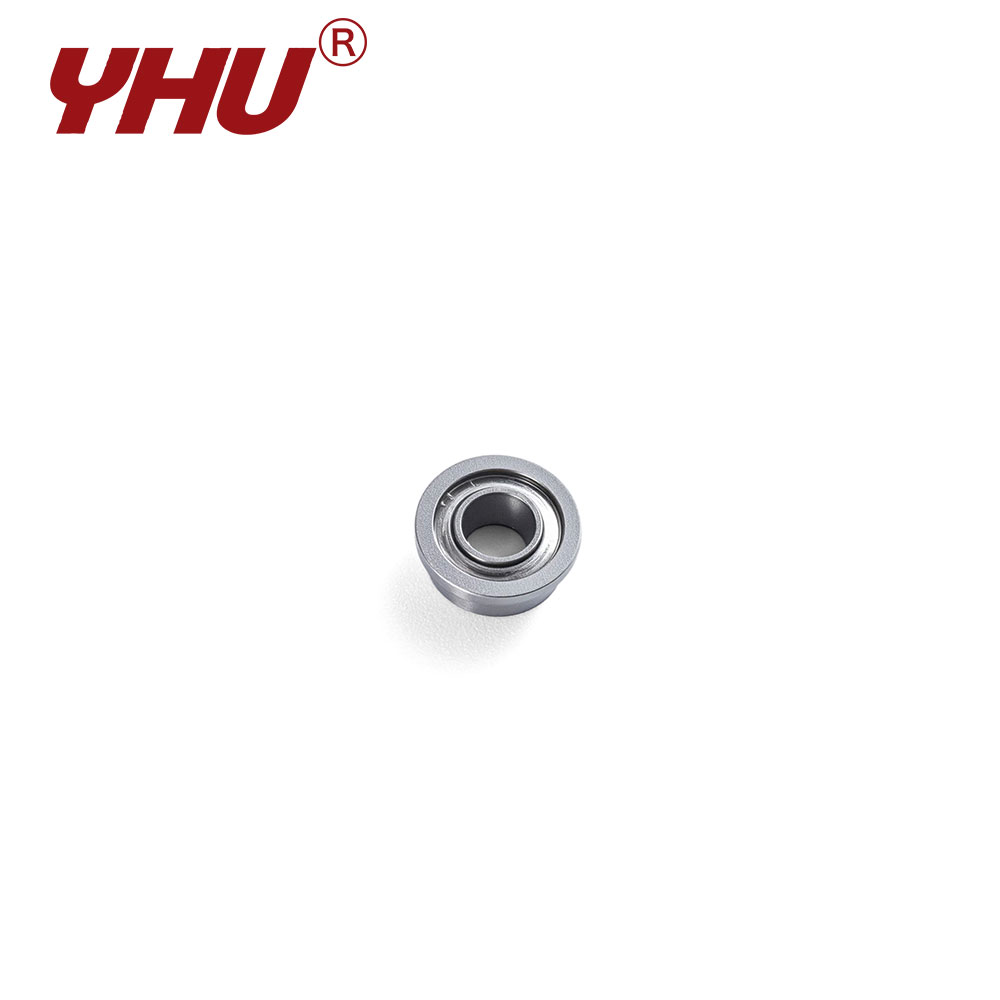

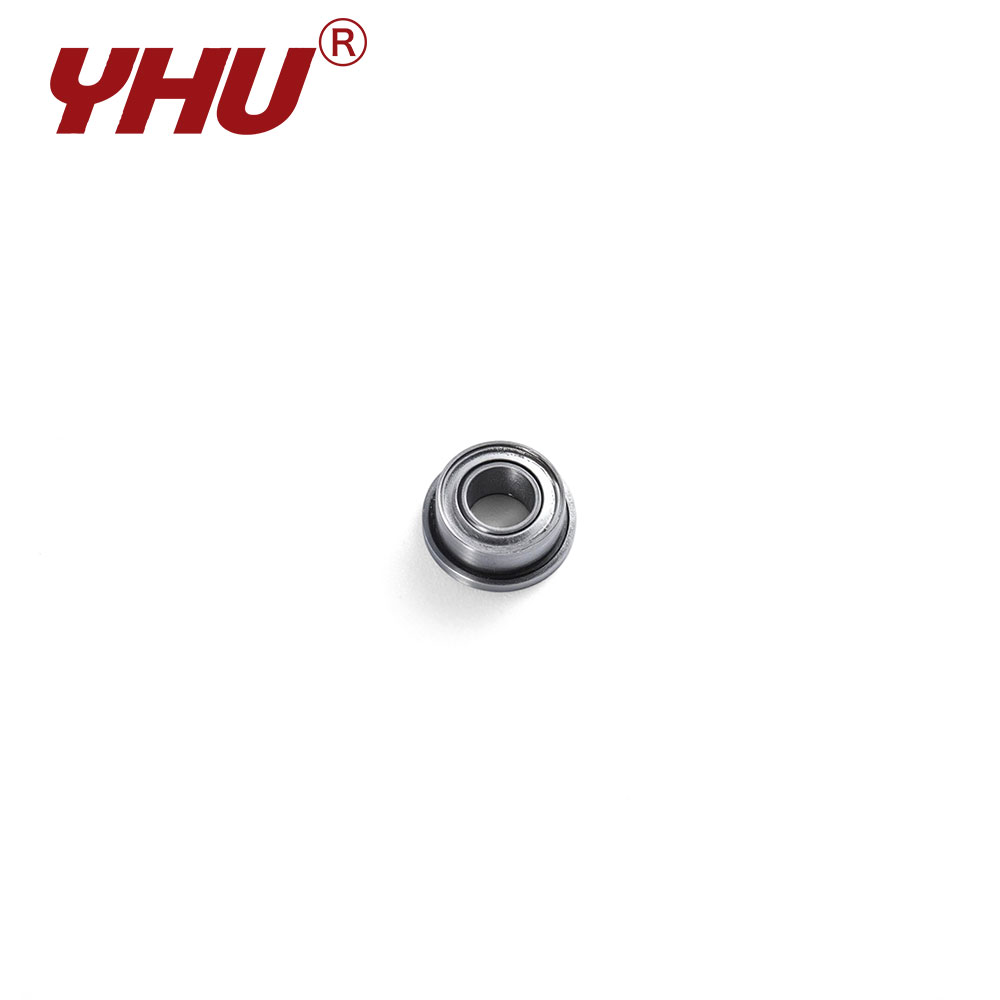

The FR133 flanged bearing stands out within the imperial series due to its unique dimensional specifications. Its flanged design offers a "plug-and-play" advantage, significantly reducing assembly time on precision production lines. Manufactured from high-grade bearing steel, the bearing boasts exceptional compressive yield strength.
Bearing Features
It demonstrates excellent vibration resistance, making it ideal for use in compact precision pneumatic tools and high-frequency vibrating equipment. The flange effectively disperses axial impact forces, protecting the equipment housing from damage. Furthermore, the optimized internal design ensures uniform lubricant distribution, maintaining effective heat dissipation and lubrication even during prolonged operation in confined spaces.
Technical Specifications
| Bearing Reference | Boundary Diameters | Basic Dynamic | Basic Static | Limiting Speeds | ||||||||||||||||||
| Flange | Open | Shield | d inch |
d mm |
D inch |
D mm |
Df inch |
Df mm |
B inch |
B mm |
Bf inch |
Bf mm |
B1 inch |
B1 mm |
Bf1 inch |
Bf1 mm |
rsmin inch |
rsmin mm |
Cr kN |
Cor kN |
Grease | Oil |
| F | FR133 | ZZ | 0.0938 | 2.381 | 0.1875 | 4.762 | 0.234 | 5.944 | 0.0625 | 1.588 | 0.018 | 0.457 | 0.0938 | 2.381 | 0.031 | 0.787 | 0.0039 | 0.1 | 0.186 | 0.059 | 9.2 | 10.4 |
