R133 Series Deep Groove Ball Bearings

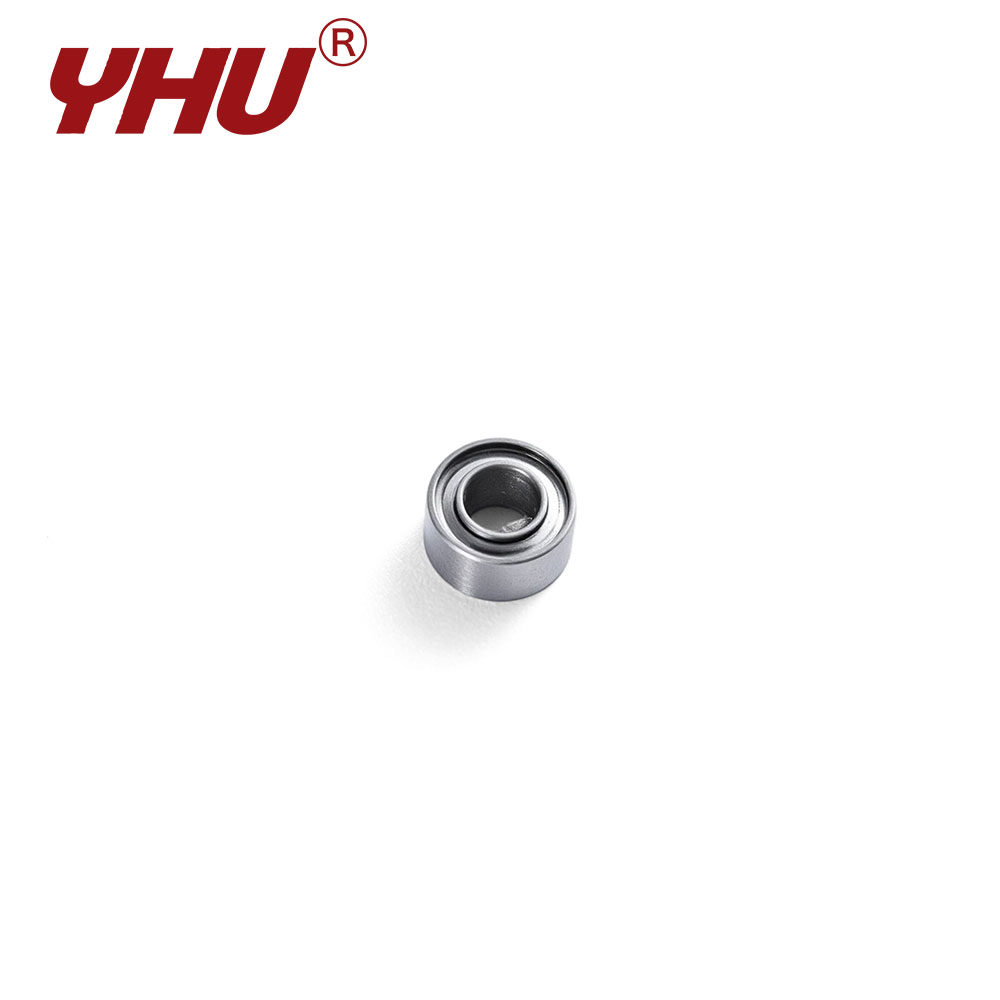

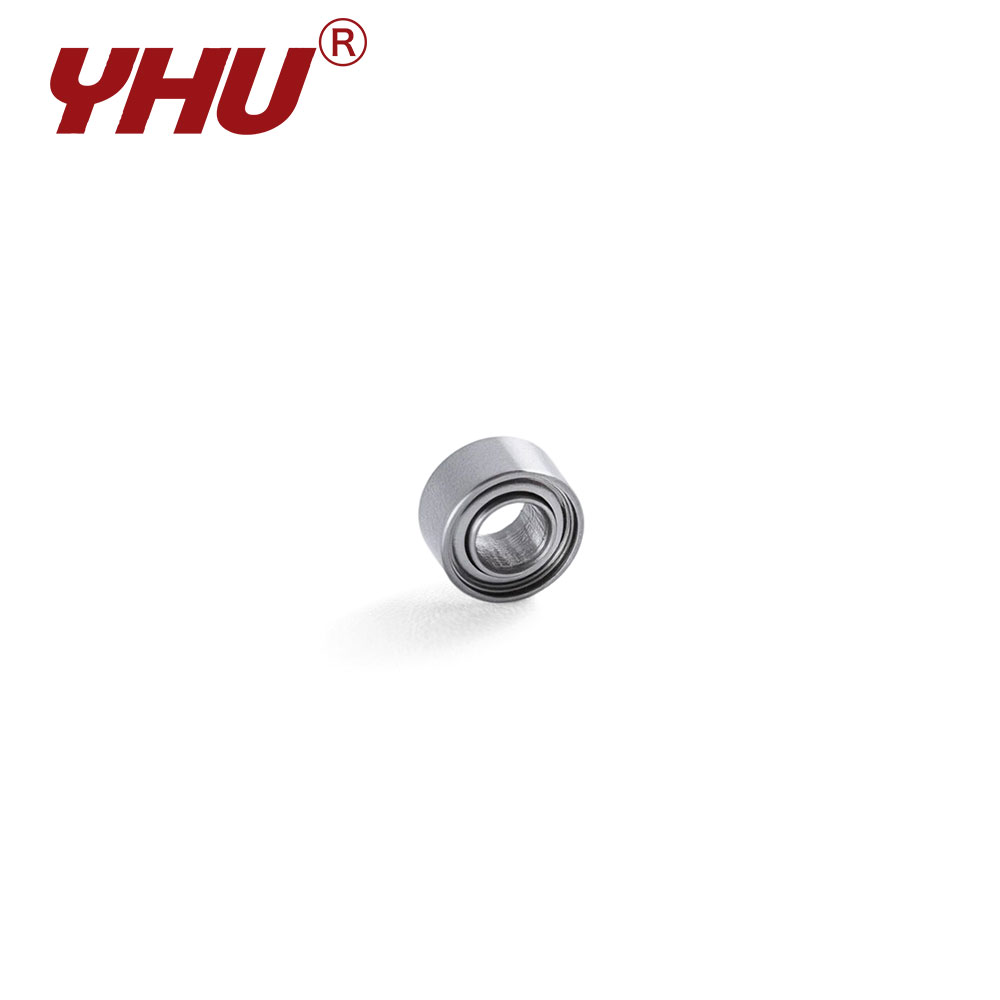

The R133 bearing is an ultra-miniature inch-series ball bearing developed specifically to meet the demands of ultra-high-speed operation. With an inner diameter of just 0.0938 inches (2.381 mm) and an outer diameter of 0.1875 inches (4.762 mm), it features an exceptionally compact profile. As a high-precision component crafted from bearing steel, this unit achieves remarkable rotational efficiency through rigorous control over the tolerances of its rings and steel balls; according to its technical specifications, its oil-lubricated limiting speed reaches an impressive 108,000 revolutions per minute.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.

Bearing Features

Despite its diminutive size, this model strikes an excellent balance between load-bearing capacity and structural stability. Its basic dynamic load rating of 0.088 kN is sufficient to handle the lightweight transmission requirements found in precision micromotors, computer peripherals, and high-end audiovisual equipment. Thanks to its deep-groove ball bearing design, it maintains extremely low levels of vibration and noise during high-speed operation—a critical factor for enhancing the signal acquisition accuracy of precision instruments. Furthermore, the product exhibits excellent fatigue strength, maintaining dimensional stability even within environments characterized by continuous, high-frequency operation; it stands as a preferred core component for office automation systems, precision measuring tools, and electronic communication devices.

Technical Specifications

Bearing Reference Boundary Diameters Basic Dynamic Basic Static Limiting Speeds
Flange Open Shield d
inch
d
mm
D
inch
D
mm
Df
inch
Df
mm
B
inch
B
mm
Bf
inch
Bf
mm
B1
inch
B1
mm
Bf1
inch
Bf1
mm
rsmin
inch
rsmin
mm
Cr
kN
Cor
kN
Grease Oil
F R133 ZZ 0.0938 2.381 0.1875 4.762 0.234 5.944 0.0625 1.588 0.018 0.457 0.0938 2.381 0.031 0.787 0.0039 0.1 0.186 0.059 9.2 10.4
