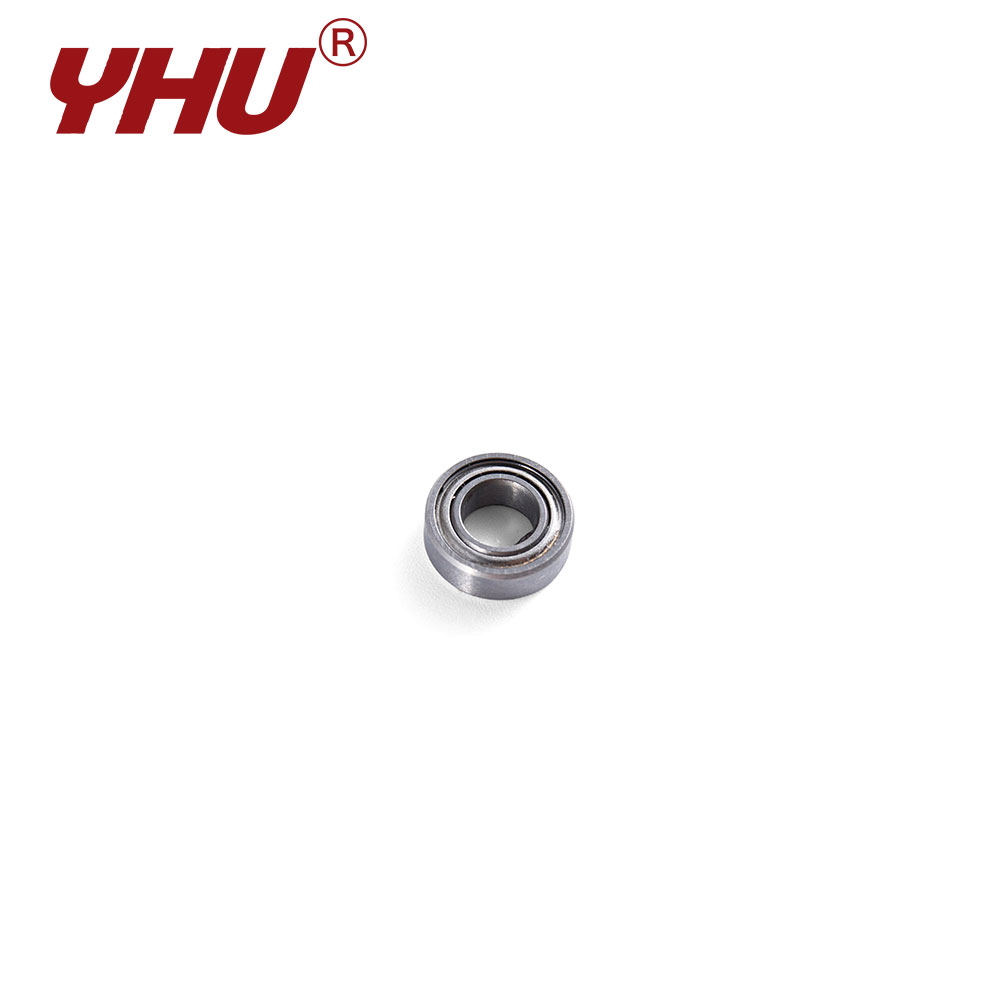

This product series features the quintessential Imperial 6.35mm (0.25-inch) inner diameter specification—widely regarded as the "gold standard" for miniature mechanical power transmission systems. Crafted entirely from high-grade bearing steel, the series boasts exceptional mechanical strength and hardness; furthermore, through a precision heat treatment process, these bearings demonstrate superior resistance to deformation during prolonged operation under load. Their deep-groove ball structure is engineered not only to efficiently support radial loads but also to accommodate bidirectional axial loads to a significant degree.
Bearing Features
Based on technical specifications, this series addresses diverse operational requirements of varying intensity through flexible adjustments in outer diameter and thickness. This tiered performance design ensures the series maintains a pivotal role in applications ranging from small electric tools and precision transmission mechanisms to industrial control sensors. Moreover, the design of these bearings places particular emphasis on dust protection and sealing capabilities, effectively preventing external contaminants from entering the raceways and thereby reducing maintenance frequency.
Technical Specifications
| Bearing Reference | Boundary Diameters | Basic Dynamic | Basic Static | Limiting Speeds | ||||||||||||||||||
| Flange | Open | Shield | d inch |
d mm |
D inch |
D mm |
Df inch |
Df mm |
B inch |
B mm |
Bf inch |
Bf mm |
B1 inch |
B1 mm |
Bf1 inch |
Bf1 mm |
rsmin inch |
rsmin mm |
Cr kN |
Cor kN |
Grease | Oil |
| F | R168 | ZZ | 0.25 | 6.35 | 0.375 | 9.525 | 0.422 | 10.719 | 0.125 | 3.175 | 0.023 | 0.584 | 0.125 | 3.175 | 0.036 | 0.914 | 0.0039 | 0.1 | 0.372 | 0.176 | 4.2 | 4.7 |
| F | R188 | ZZ | 0.25 | 6.35 | 0.5 | 12.7 | 0.547 | 13.894 | 0.125 | 3.175 | 0.023 | 0.584 | 0.1875 | 4.762 | 0.045 | 1.143 | 0.0059 | 0.15 | 1.08 | 0.441 | 3.5 | 3.9 |
| F | R4 | ZZ | 0.25 | 6.35 | 0.625 | 15.875 | 0.69 | 17.526 | 0.196 | 4.978 | 0.042 | 1.067 | 0.196 | 4.978 | 0.042 | 1.067 | 0.0118 | 0.3 | 1.48 | 0.617 | 3 | 3.3 |
| - | R4A | ZZ | 0.25 | 6.35 | 0.75 | 19.05 | - | - | 0.2188 | 5.556 | - | - | 0.2812 | 7.144 | - | - | 0.0157 | 0.4 | 2.33 | 0.892 | 2.6 | 2.9 |
