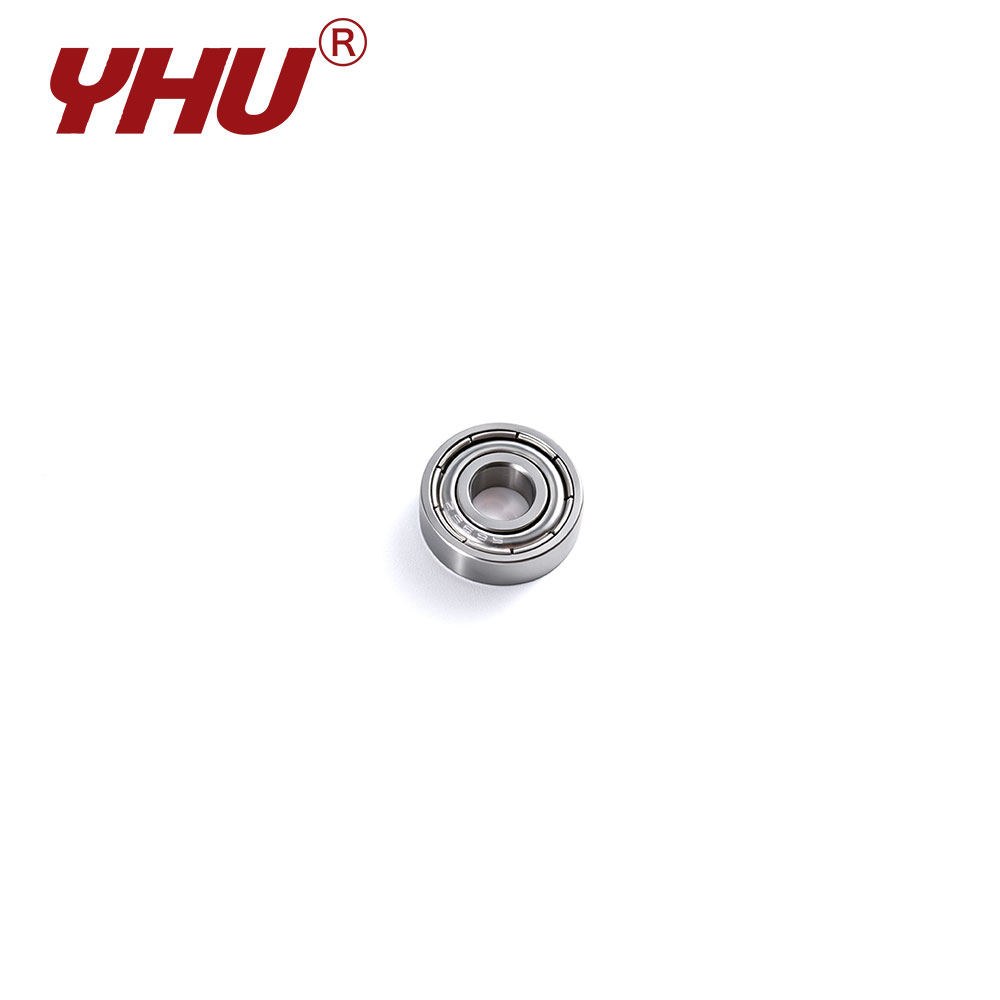

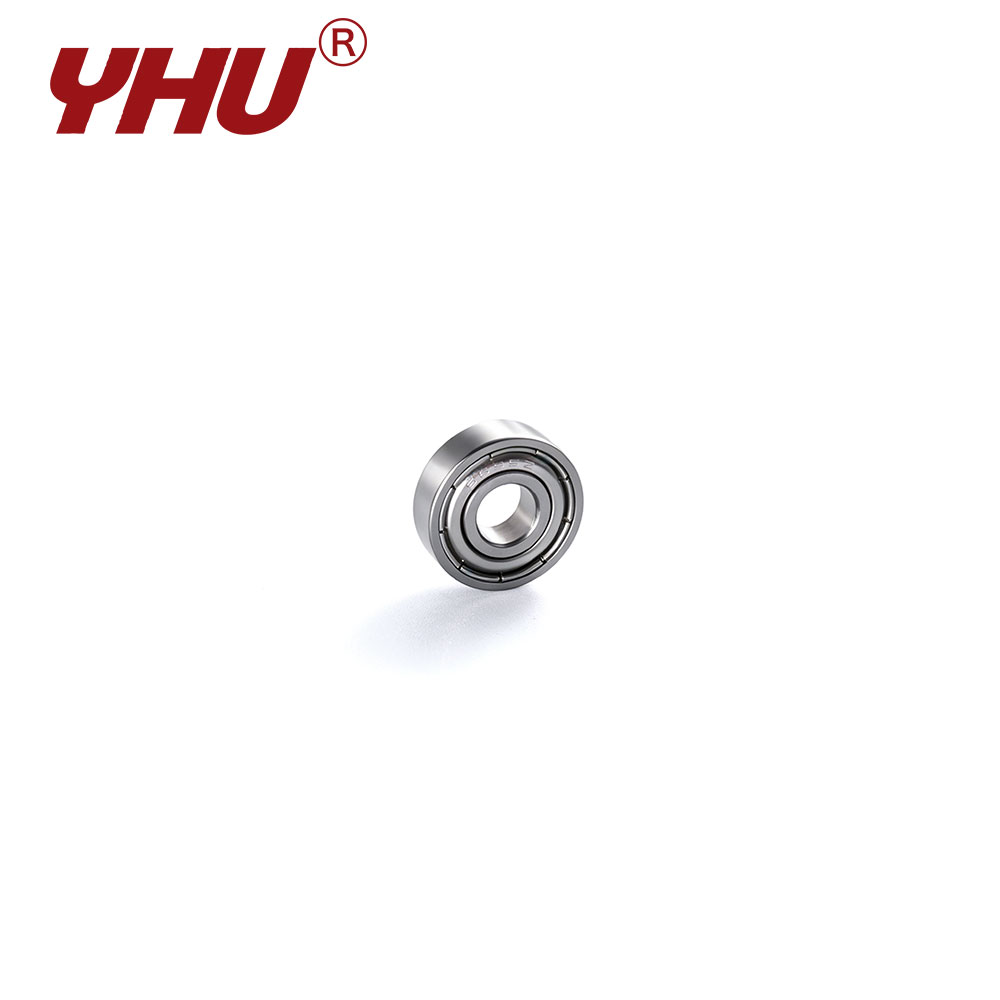

S60 Series SUS440 Stainless Steel Bearings

The S60 series leverages the physical properties of SUS440 stainless steel to achieve an optimal balance between high rotational speeds and moderate load capacities. The precision fit between the raceway curvature and the steel ball diameter enables the bearings to handle not only radial loads but also bidirectional axial loads to a certain extent. Additionally, the strong magnetic properties of the SUS440 material offer unique utility in specific sensing and detection equipment.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.

Bearing Features

These bearings typically feature excellent sealing compatibility, effectively preventing the ingress of dust and moisture into the internal raceways. They also demonstrate impressive thermal performance; the stainless steel material maintains dimensional stability across a wide temperature range, thereby reducing the risk of seizure caused by thermal expansion or contraction.

Technical Specifications

Bearing Reference Boundary Diameters Basic Dynamic Basic Static Limiting Speeds
Flange Open Shield d
mm
D
mm
Df
mm
B
mm
Bf
mm
B1
mm
Bf1
mm
rsmin
mm
Cr(kN) Cor(kN) Grease Oil
F S602 ZZ 2 7 8.5 2.8 0.7 3.5 0.9 0.15 0.382 0.127 7.3 8.2
F S603 ZZ 3 9 10.5 3 0.7 5 1 0.15 0.568 0.186 5.5 6.2
F S604 ZZ 4 12 13.5 4 1 4 1 0.2 0.96 0.353 4.1 4.6
F S605 ZZ 5 14 16 5 1 5 1 0.2 1.33 0.51 3.5 3.9
F S606 ZZ 6 17 19 6 1.2 6 1.2 0.3 2.26 0.843 2.9 3.2
F S607 ZZ 7 19 22 6 1.5 6 1.5 0.3 2.33 0.892 2.5 2.8
F S608 ZZ 8 22 25 7 1.5 7 1.5 0.3 3.29 1.38 2.2 2.5
F S609 ZZ 9 24 27 7 1.5 7 1.5 0.3 3.33 1.42 2 2.2
