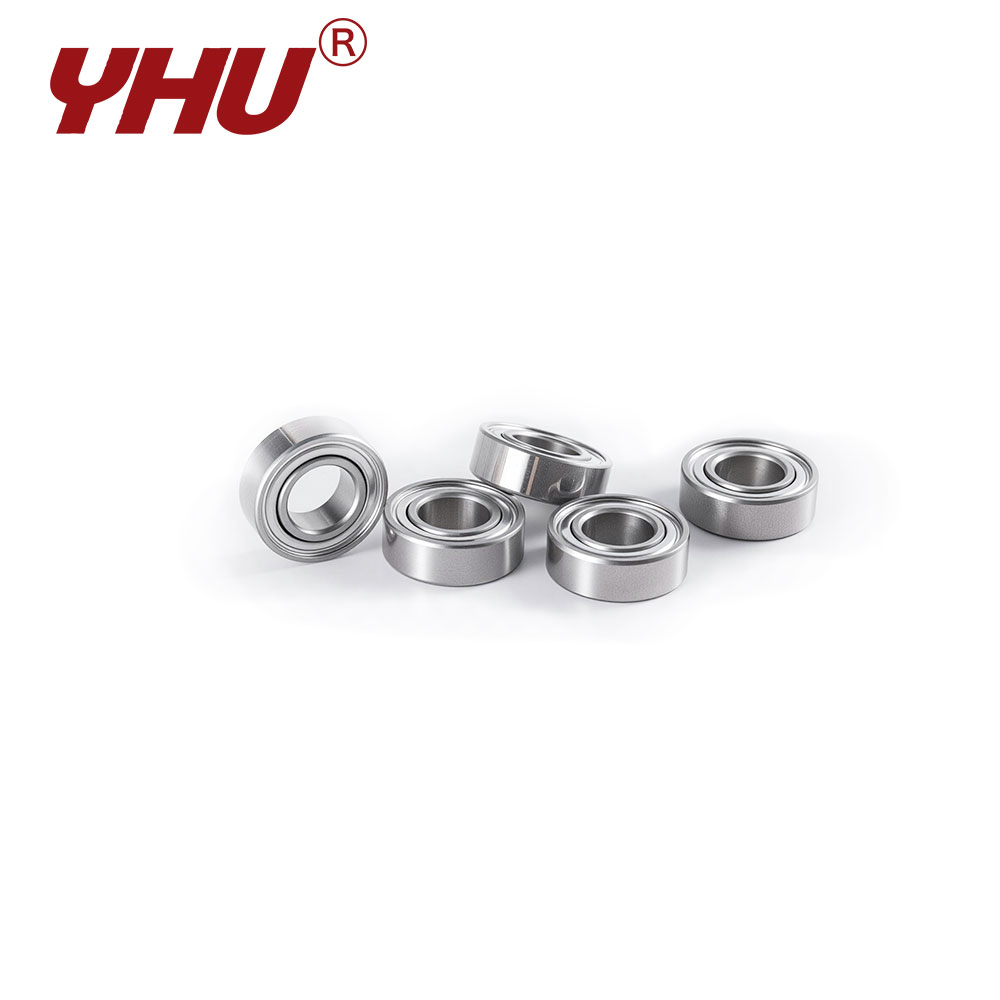

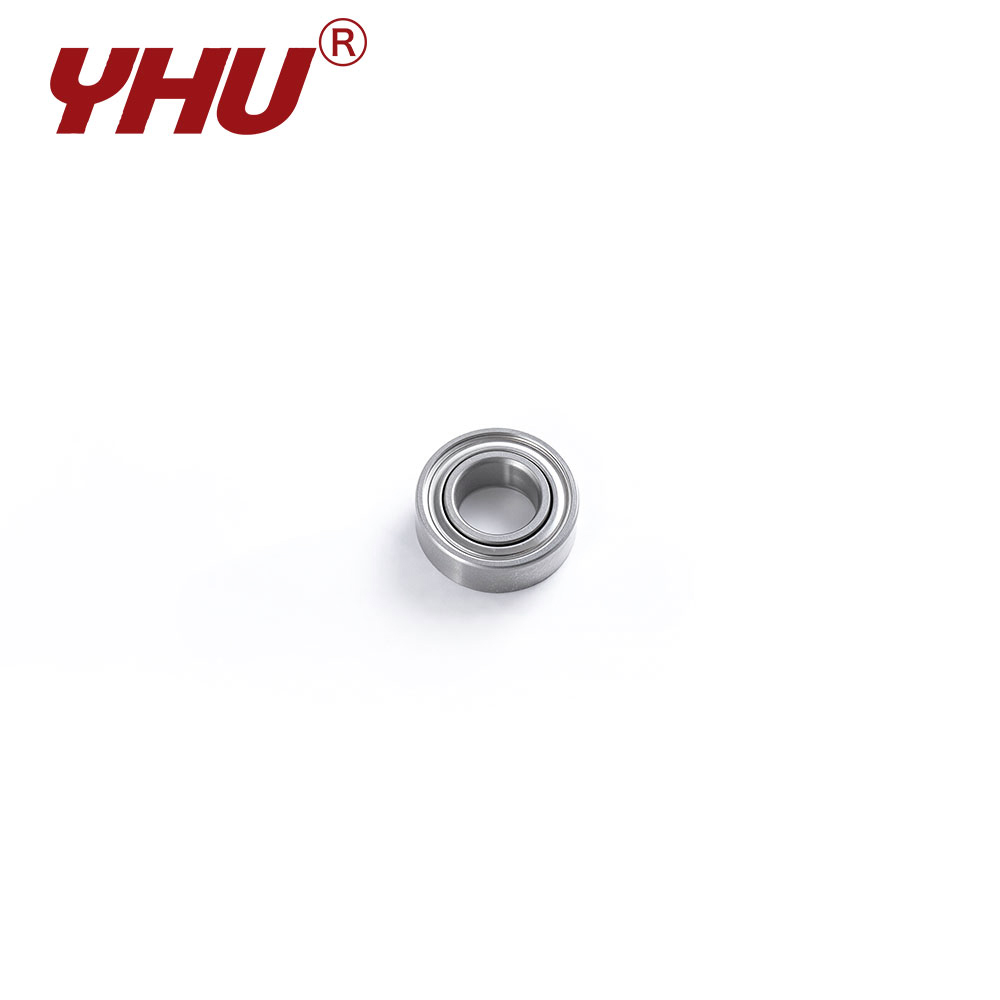

The S62 series consists of SUS440 stainless steel deep-groove ball bearings designed to balance load-bearing capacity with installation space requirements. As a narrow-profile series, it features an optimized ratio between outer and inner diameters, enabling it to withstand higher radial loads than the ultra-thin series while maintaining rotational precision. The SUS440 material undergoes heat treatment to achieve exceptional hardness and wear resistance, effectively reducing maintenance costs associated with frequent bearing replacements.
Bearing Features
Its deep-groove raceway design ensures stability for the steel balls during high-speed operation, significantly minimizing vibration. The standardized dimensions of the S62 series offer excellent interchangeability, allowing for the easy replacement of existing carbon steel bearings to enhance equipment corrosion resistance. These robust and versatile characteristics make the series a core drive component in industrial pumps, small centrifuges, and power tools.
Technical Specifications
| Bearing Reference | Boundary Diameters | Basic Dynamic | Basic Static | Limiting Speeds | ||||||||||
| Flange | Open | Shield | d mm |
D mm |
Df mm |
B mm |
Bf mm |
B1 mm |
Bf1 mm |
rsmin mm |
Cr(kN) | Cor(kN) | Grease | Oil |
| F | S623 | ZZ | 3 | 10 | 11.5 | 4 | 1 | 4 | 1 | 0.15 | 0.627 | 0.216 | 5.1 | 5.7 |
| F | S624 | ZZ | 4 | 13 | 15 | 5 | 1 | 5 | 1 | 0.2 | 1.3 | 0.49 | 3.9 | 4.4 |
| F | S625 | ZZ | 5 | 16 | 18 | 5 | 1 | 5 | 1 | 0.3 | 1.72 | 0.676 | 3.1 | 3.5 |
| F | S626 | ZZ | 6 | 19 | 22 | 6 | 1.5 | 6 | 1.5 | 0.3 | 2.33 | 0.892 | 2.6 | 3 |
| F | S627 | ZZ | 7 | 22 | 25 | 7 | 1.5 | 7 | 1.5 | 0.3 | 3.28 | 1.38 | 2.3 | 2.6 |
| F | S628 | ZZ | 8 | 24 | - | 8 | - | 8 | - | 0.3 | 3.33 | 1.42 | 2.1 | 2.3 |
| F | S629 | ZZ | 9 | 26 | - | 8 | - | 8 | - | 0.3 | 4.57 | 1.98 | 1.9 | 2.1 |
