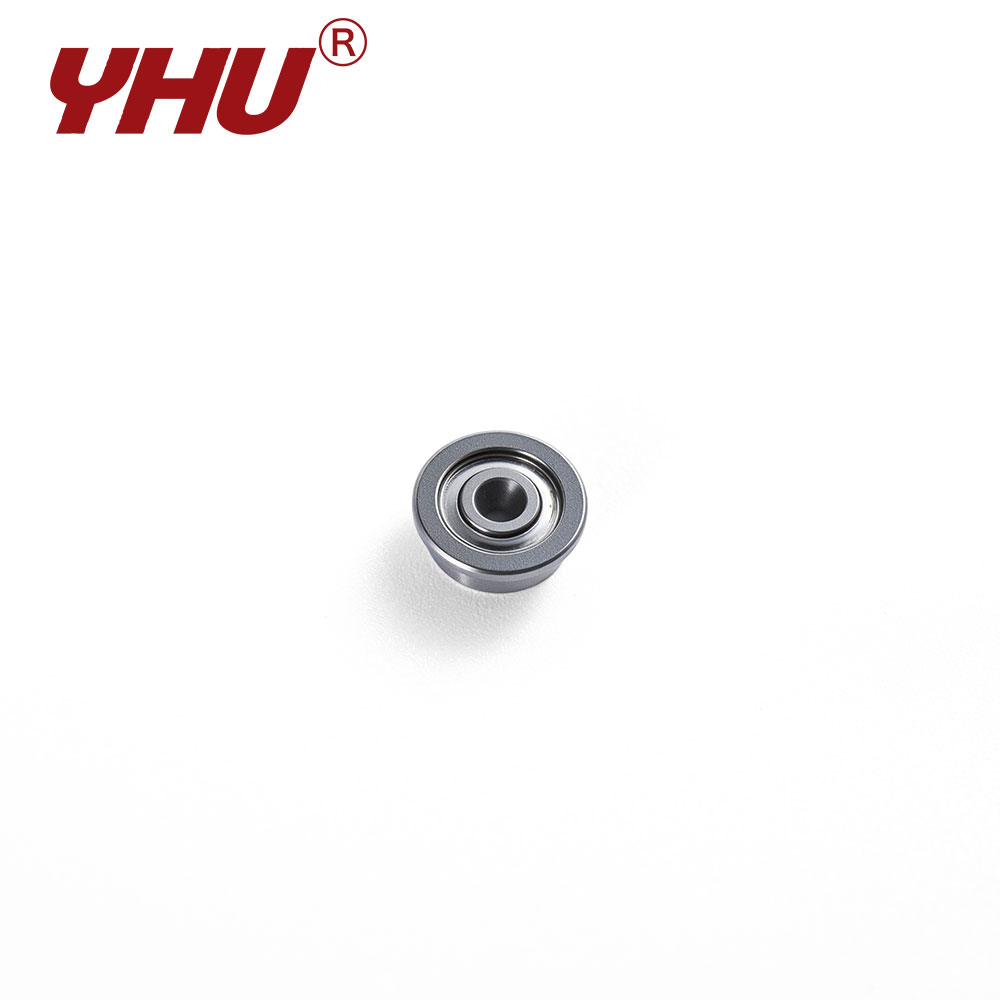

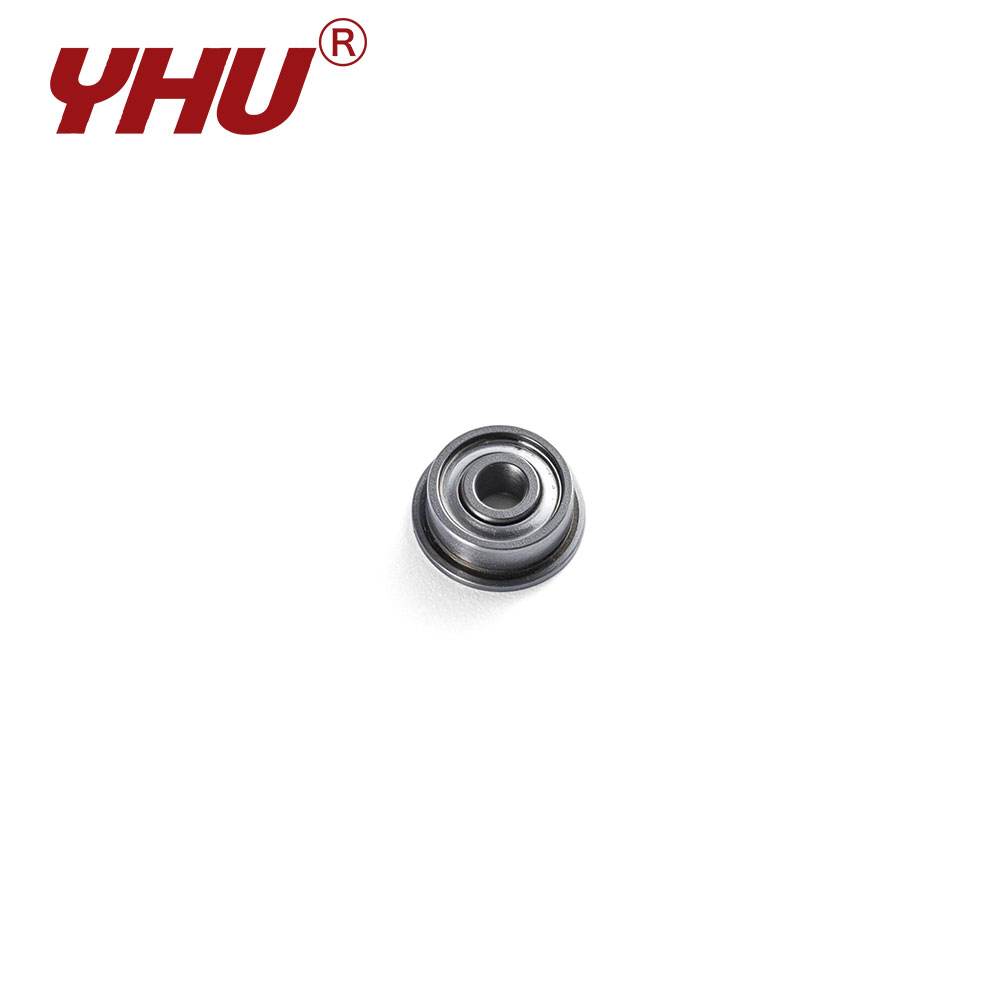

SF68 Series SUS316 Stainless Steel Flanged Bearings

The 68 series consists of thin-section, flanged deep-groove ball bearings and represents the most widely used thin-section series made from 316-grade stainless steel. In high-speed chemical pump shaft sealing applications, the 68 series not only ensures low-friction rotation but also withstands corrosion from the pumped media; the flange serves as a support interface for the secondary seal.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.

Bearing Features

SUS316 material offers superior creep strength at elevated temperatures, making this series more stable than standard stainless steel for precision drive components requiring high-temperature sterilization or operation near thermochemical reactors. The flanged design eliminates the need for bearing caps and reduces the total number of parts; combined with the exceptional corrosion resistance of SUS316, this significantly lowers the total lifecycle cost.

Technical Specifications

Bearing Reference  Boundary Diameters  Basic Dynamic  Basic Static  Limiting Speeds
Flange Open  Shield  seal d(mm) D(mm) Df(mm) B/B1(mm) Bf(mm) rsmin(mm) Cr(kN) Cor(kN) Grease  Oil
F SF6800 ZZ 2RS 10 19 21 5 0.8 0.3 1.72 0.843 2.3 2.6
F SF6801 ZZ 2RS 12 21 23 5 1.1 0.3 1.91 1.04 2 2.2
F SF6802 ZZ 2RS 15 24 26 5 1.1 0.3 2.07 1.25 1.7 1.9
F SF6803 ZZ 2RS 17 26 28 5 1.1 0.3 2.23 1.46 1.5 1.7
F SF6804 ZZ 2RS 20 32 35 7 1.5 0.3 4.02 2.46 1.3 1.4
F SF6805 ZZ 2RS 25 37 40 7 1.5 0.3 4.3 2.93 1.1 1.2
F SF6806 ZZ 2RS 30 42 45 7 1.5 0.3 4.54 3.4 0.9 1
