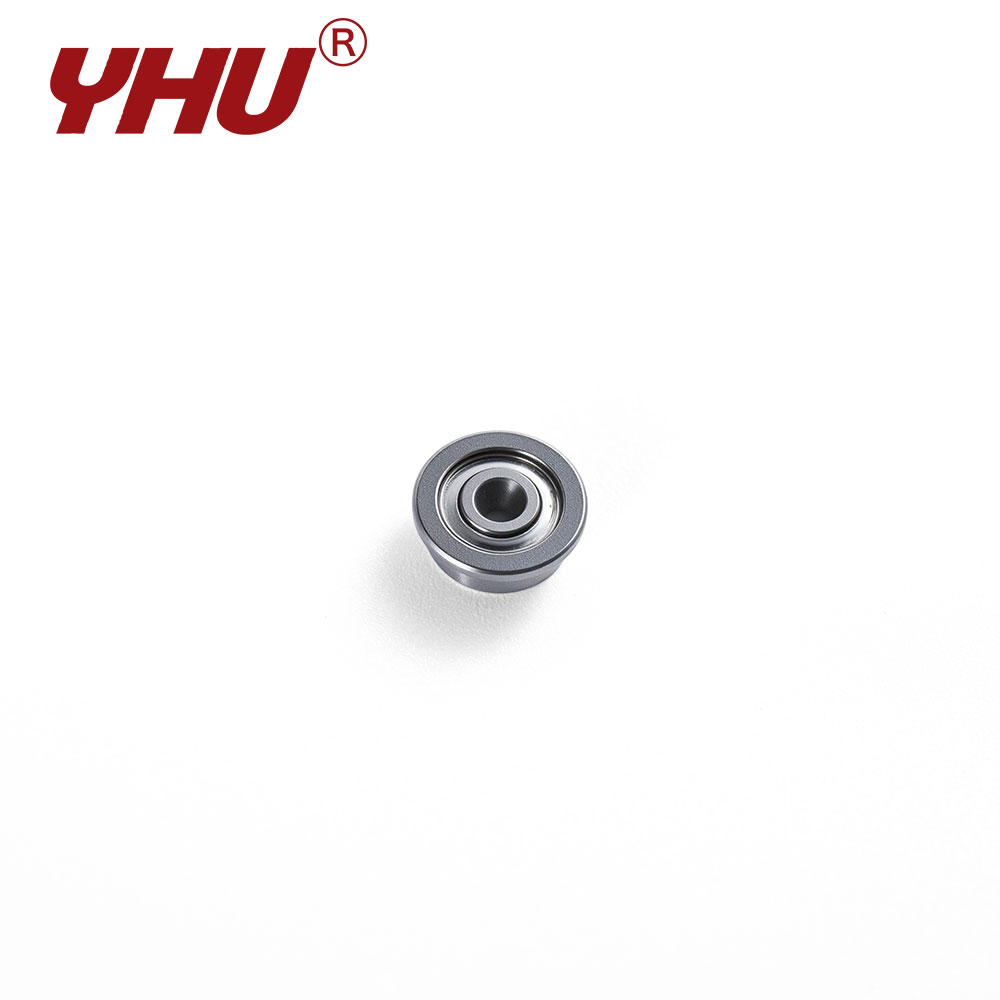

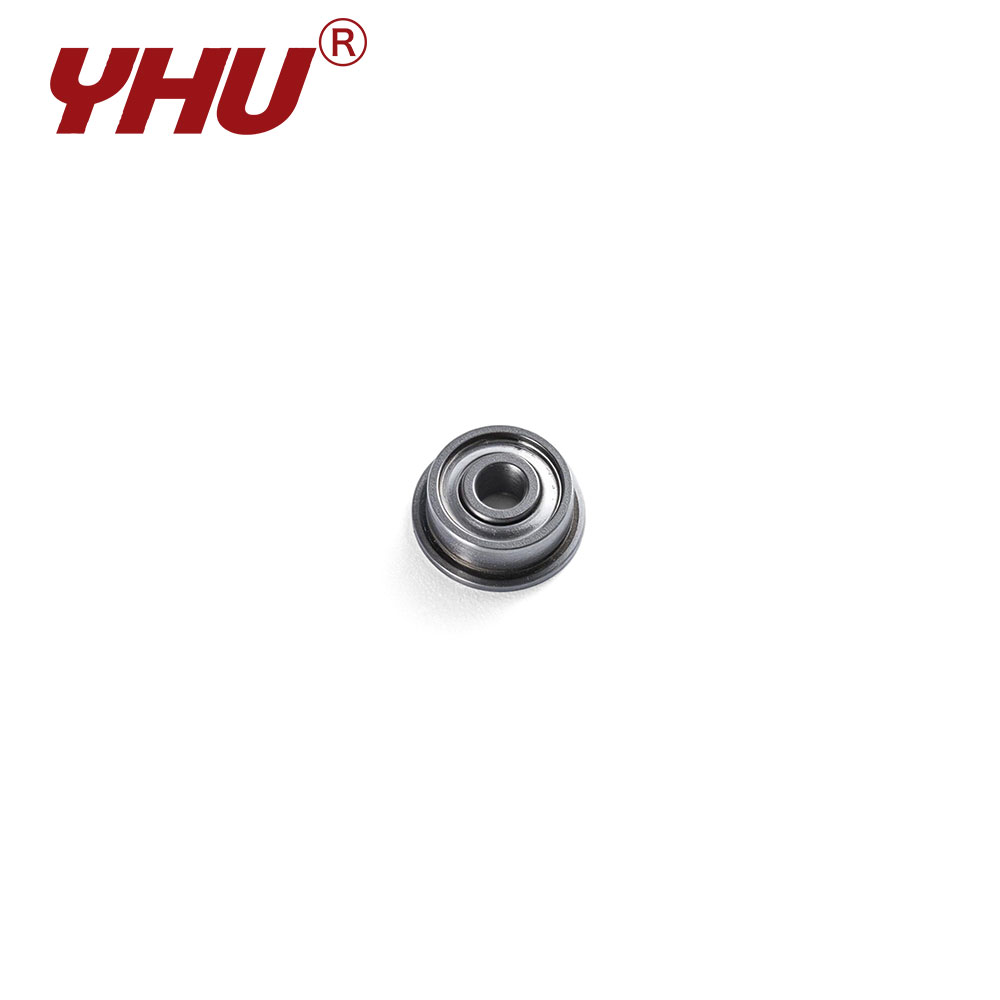

SF67 Series SUS316 Stainless Steel Flanged Bearings

The 67 series consists of ultra-thin-walled bearings manufactured from SUS316, a material offering superior performance. SUS316 contains 2–3% molybdenum (Mo), providing exceptional resistance to pitting corrosion—particularly in environments such as seawater (containing chloride ions) or chemical vapors. These thin-walled flanged bearings are frequently used in the precision rotating shafts of marine exploration instruments.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.

Bearing Features

The series is highly space-efficient; the flanged design addresses the challenge of securing bearings within thin-walled housings, as the flange mounts directly against the housing to enable the assembly of extremely compact mechanical structures. SUS316 offers better bio-inertness than SUS304; consequently, the 6700–6706 series is commonly used in centrifuges and biochemical analyzers—specifically in components handling corrosive liquids—to ensure that no metal ions leach out and interfere with experiments.

Technical Specifications

Bearing Reference  Boundary Diameters  Basic Dynamic  Basic Static  Limiting Speeds
Flange Open  Shield  seal d(mm) D(mm) Df(mm) B/B1(mm) Bf(mm) rsmin(mm) Cr(kN) Cor(kN) Grease  Oil
F SF6700 ZZ 2RS 10 15 16.5 3/4 0.8 0.15 0.853 0.431 2.6 3
F SF6701 ZZ 2RS 12 18 19.5 4 0.8 0.2 0.921 0.529 2.2 2.5
F SF6702 ZZ 2RS 15 21 22.5 4 0.8 0.2 0.941 0.578 1.8 2.1
F SF6703 ZZ 2RS 17 23 24.5 4 0.8 0.2 1 0.657 1.7 1.9
F SF6704 ZZ 2RS 20 27 28.5 4 0.8 0.2 1.04 0.725 1.4 1.6
F SF6705 - 2RS 25 32 34 4 1 0.2 1.09 0.843 1.2 1.3
F SF6706 - 2RS 30 37 39 4 1 0.2 1.15 0.951 1 1.1
