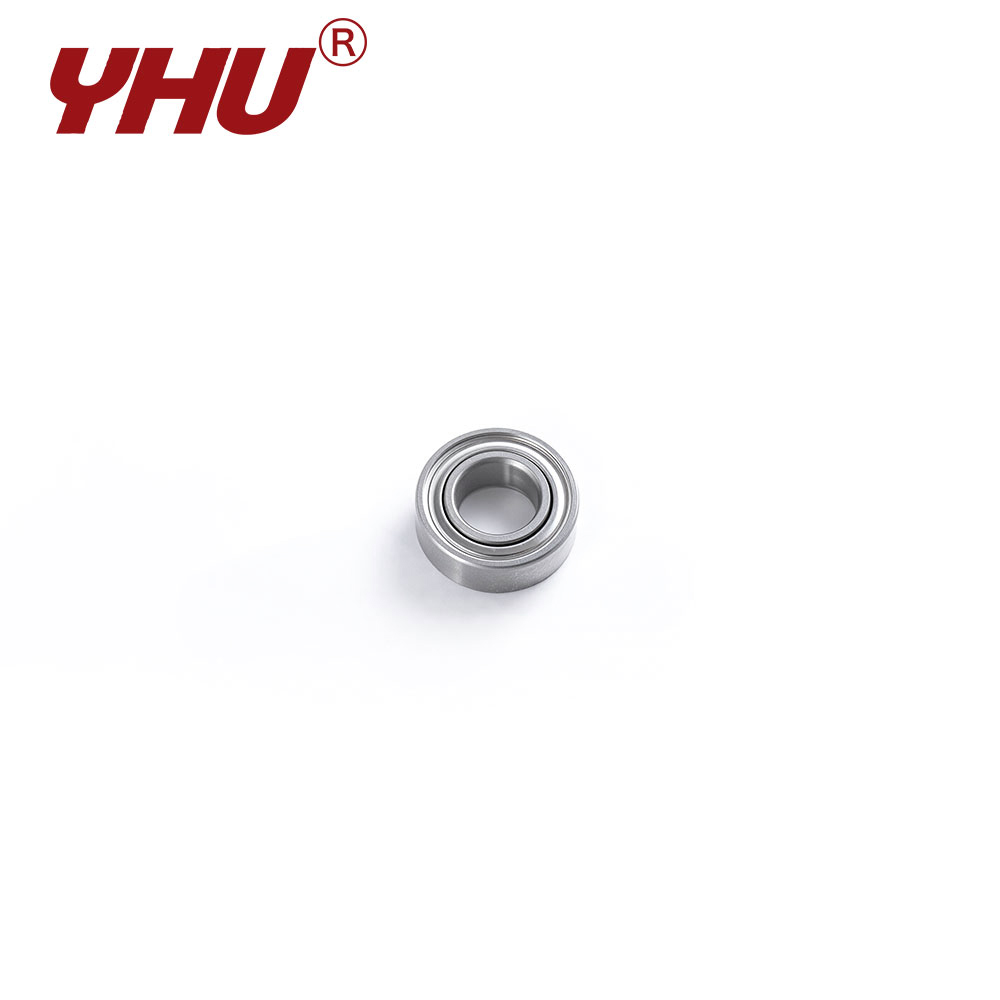

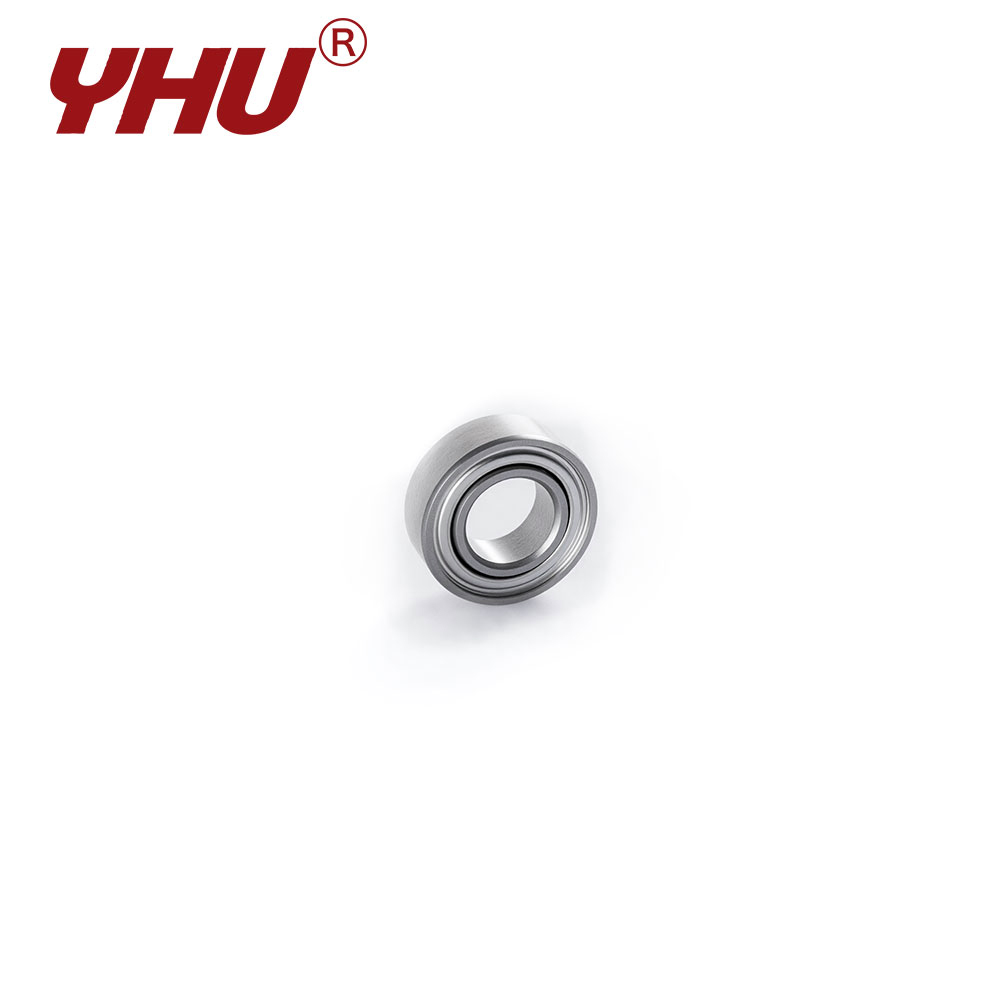

S62 Series SUS420 Stainless Steel Bearings

This series features a standard radial dimension design and is among the most widely used stainless steel deep-groove ball bearings. Constructed from SUS420 stainless steel, the bearings offer balanced mechanical properties, combining corrosion resistance with load-bearing limits comparable to standard bearing steel.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.

Bearing Features

The structural design optimizes the raceway curvature ratio to create an ideal contact ellipse between the balls and raceways, enabling the bearings to withstand bidirectional axial loads and substantial radial loads. In terms of maintenance, the series typically comes equipped with double-sided dust shields or seals and is pre-lubricated with high-temperature, anti-rust grease, ensuring a long, maintenance-free service life. In applications such as food processing equipment, home appliance motors, and small pumps, the 62 series effectively prevents rust caused by environmental humidity while maintaining efficient power transmission. The material's high modulus of elasticity ensures resistance to plastic deformation under impact loads.

Technical Specifications

Bearing Reference Boundary Diameters Basic Dynamic Basic Static Limiting Speeds
Flange Open  Shield  d
mm
D
mm
Df
mm
B
mm
Bf
mm
B1
mm
Bf1
mm
rsmin
mm
Cr(kN) Cor(kN) Grease Oil
F S623 ZZ 3 10 11.5 4 1 4 1 0.15 0.627 0.216 5.1 5.7
F S624 ZZ 4 13 15 5 1 5 1 0.2 1.3 0.49 3.9 4.4
F S625 ZZ 5 16 18 5 1 5 1 0.3 1.72 0.676 3.1 3.5
F S626 ZZ 6 19 22 6 1.5 6 1.5 0.3 2.33 0.892 2.6 3
F S627 ZZ 7 22 25 7 1.5 7 1.5 0.3 3.28 1.38 2.3 2.6
F S628 ZZ 8 24 - 8 - 8 - 0.3 3.33 1.42 2.1 2.3
F S629 ZZ 9 26 - 8 - 8 - 0.3 4.57 1.98 1.9 2.1

About Us

Jiangsu Yinghong Transmission Technology Co., Ltd. (YHU) was established in 2024 through the joint investment of Dongguan Yinghong, Linqing Boshuo, and Yancheng Jiwei. As a group-based enterprise specializing in the research, development, manufacturing, and service of transmission products, we leverage extensive industry experience and strong technical expertise to provide reliable, energy-efficient transmission solutions for customers worldwide.

The company covers more than 70 mu of land and operates nearly 10,000 square meters of manufacturing facilities. As a professional manufacturer of precision special bearings in China, we have introduced advanced Japanese precision manufacturing technology and equipped our facility with automated production lines and high-precision testing equipment. A comprehensive quality management system ensures consistent product quality and reliable performance.

As a National High-Tech Enterprise, Yinghong holds multiple invention and utility model patents and has obtained internationally recognized certifications including IATF 16949, RoHS, CE, and SGS. These certifications enable us to meet diverse customer requirements and provide effective solutions for demanding applications and complex technical challenges.

We specialize in the production of high-precision deep groove ball bearings and custom non-standard bearings under our registered trademark, “YHU”. Our main products include bearing steel bearings, stainless steel bearings, ceramic bearings, and plastic bearings.

YHU bearings are designed to deliver low noise, low vibration, low friction, high precision, great sealing performance, and high-speed operation. They also offer self-lubrication, corrosion resistance, rust resistance, acid and alkali resistance, chemical resistance, electrical insulation, non-magnetic properties, high-temperature resistance, low-temperature adaptability, and long service life, making them suitable for demanding operating environments.

Our bearings and bearing assemblies are widely used in electric motors, power tools, pneumatic tools, robotics, drones, household appliances, precision instruments, semiconductor equipment, medical devices, marine equipment, aerospace applications, financial equipment, textile machinery, fishing equipment, and a wide range of specialized industrial equipment.
