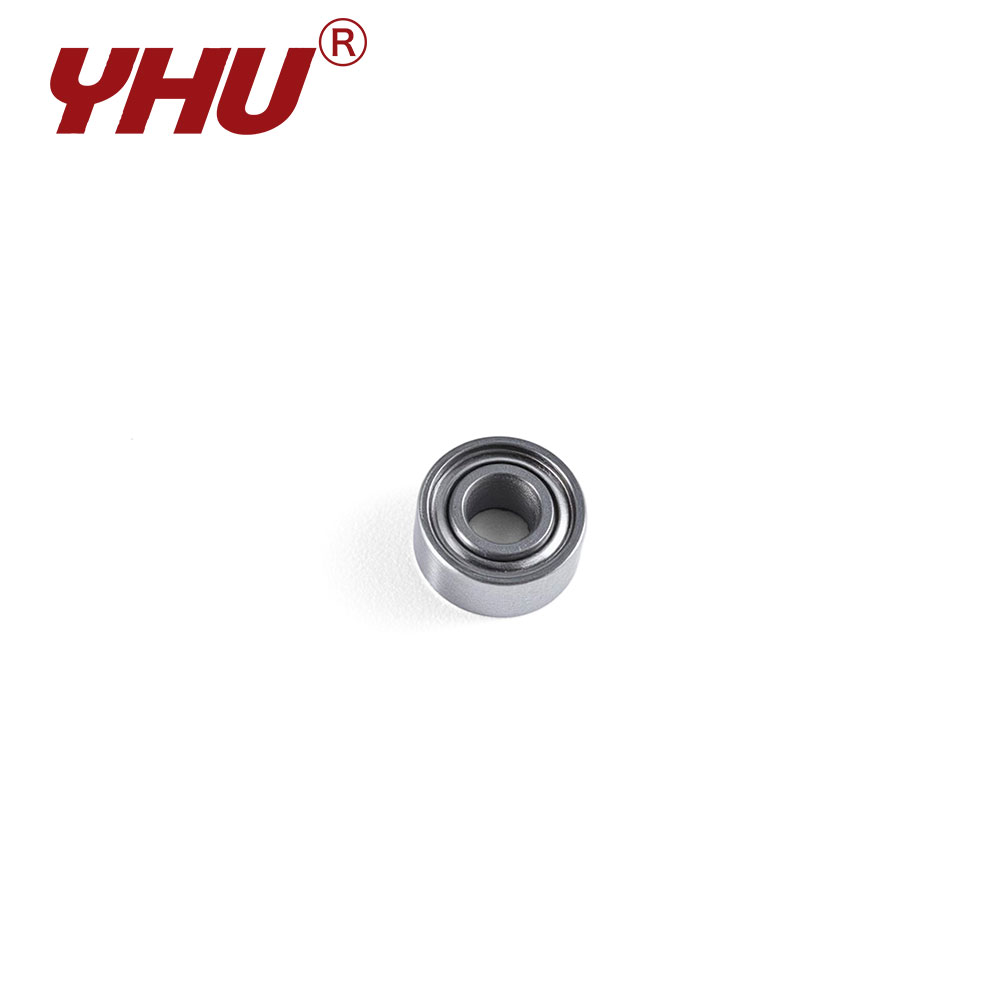

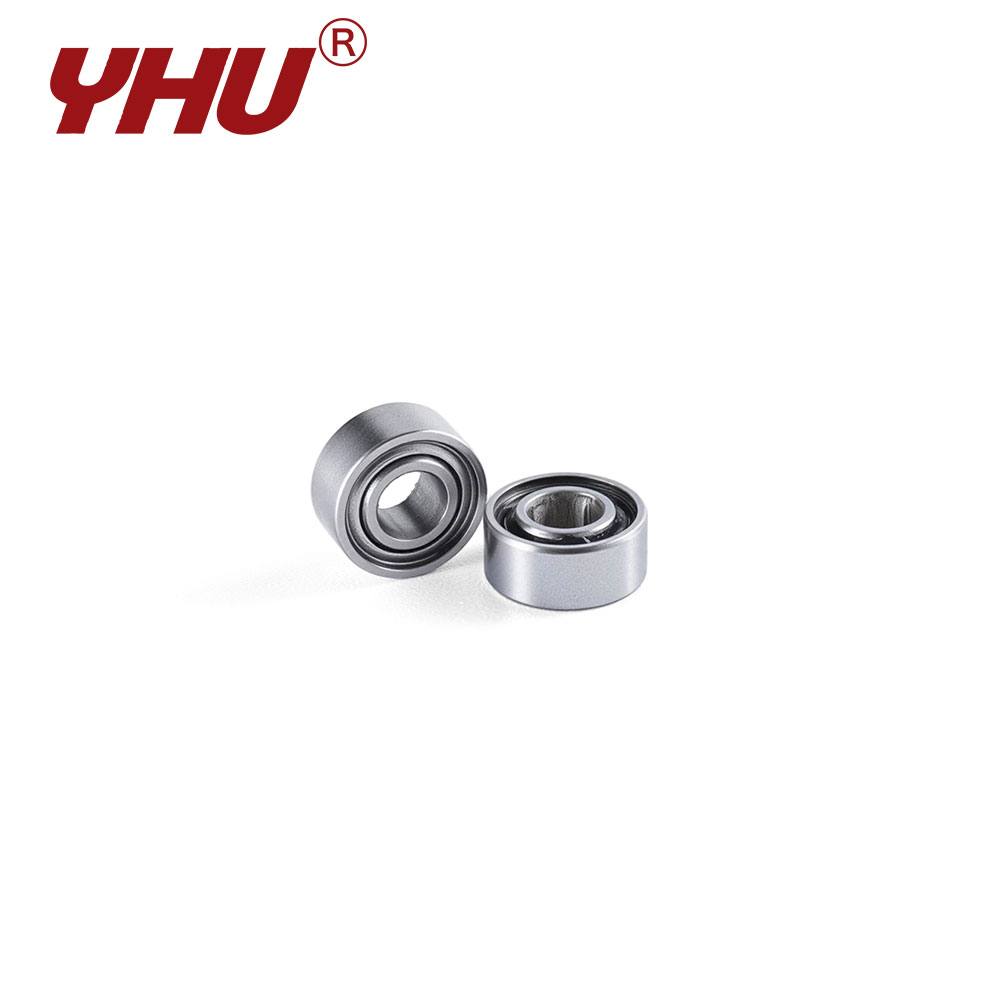

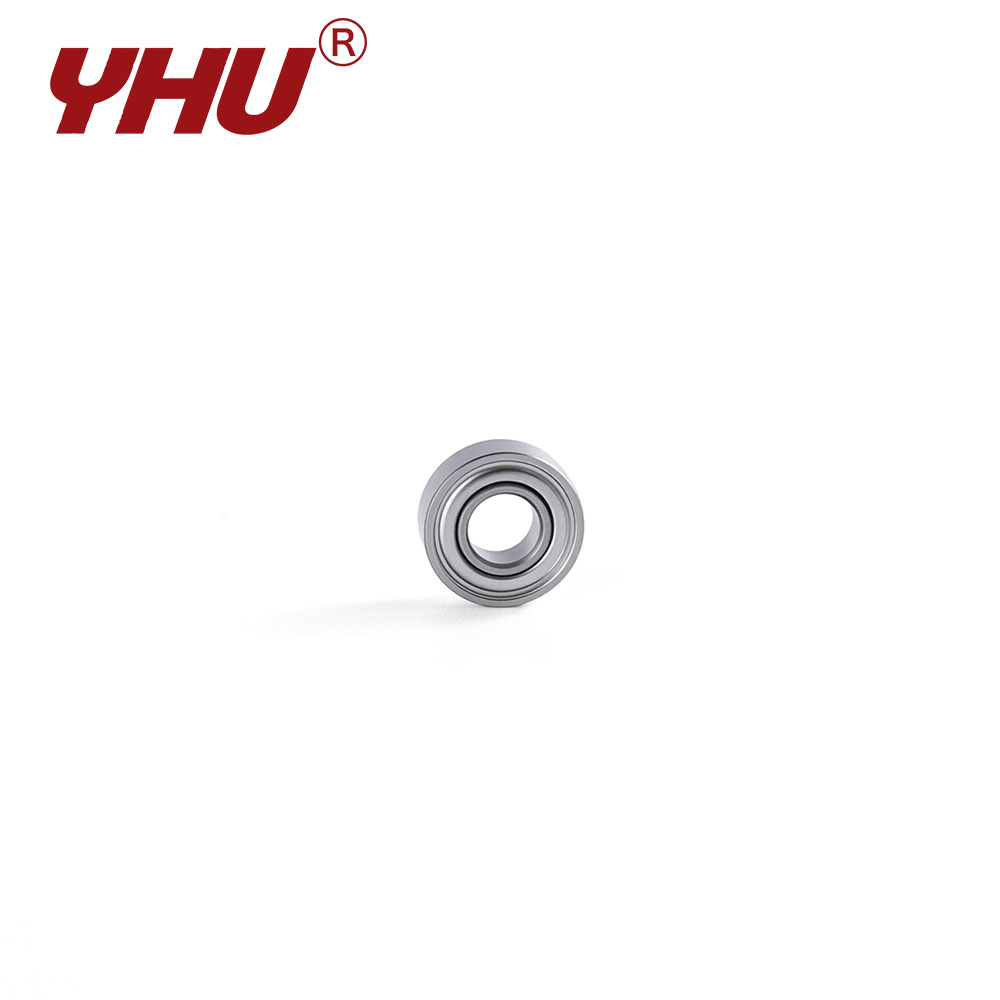

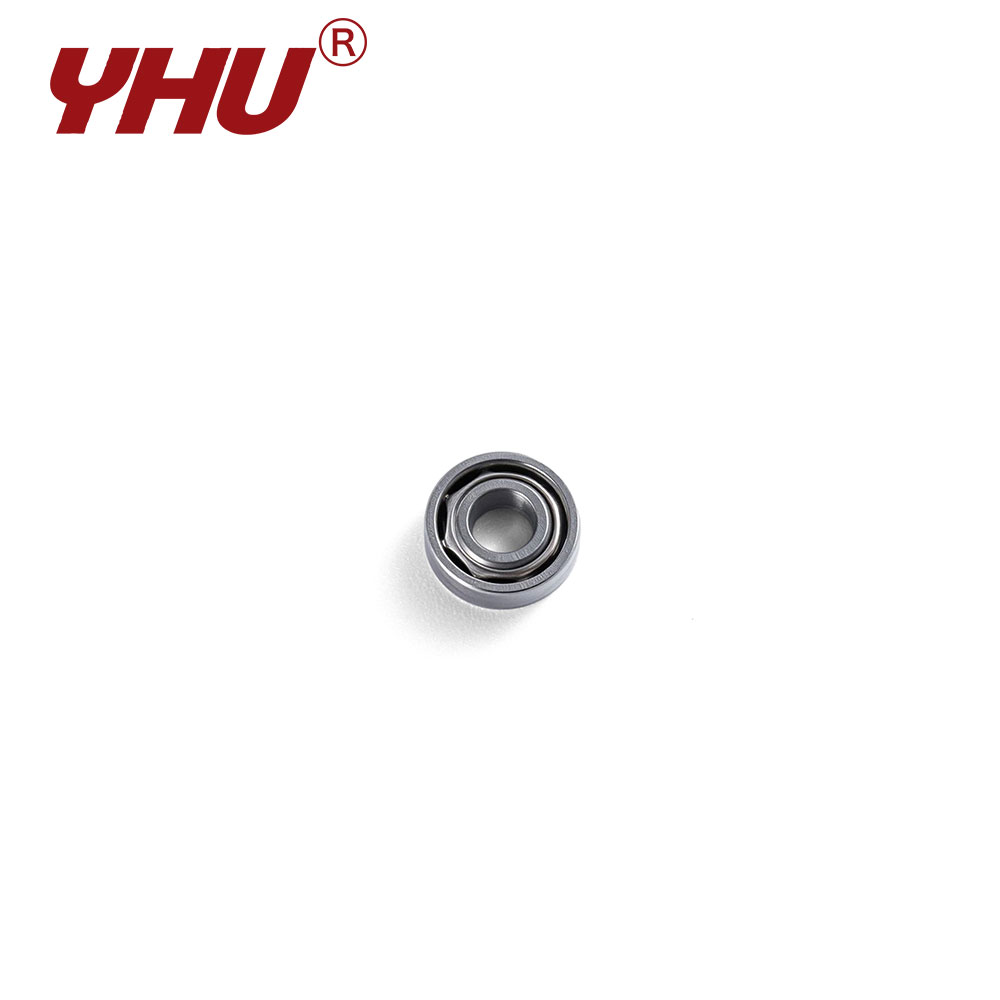

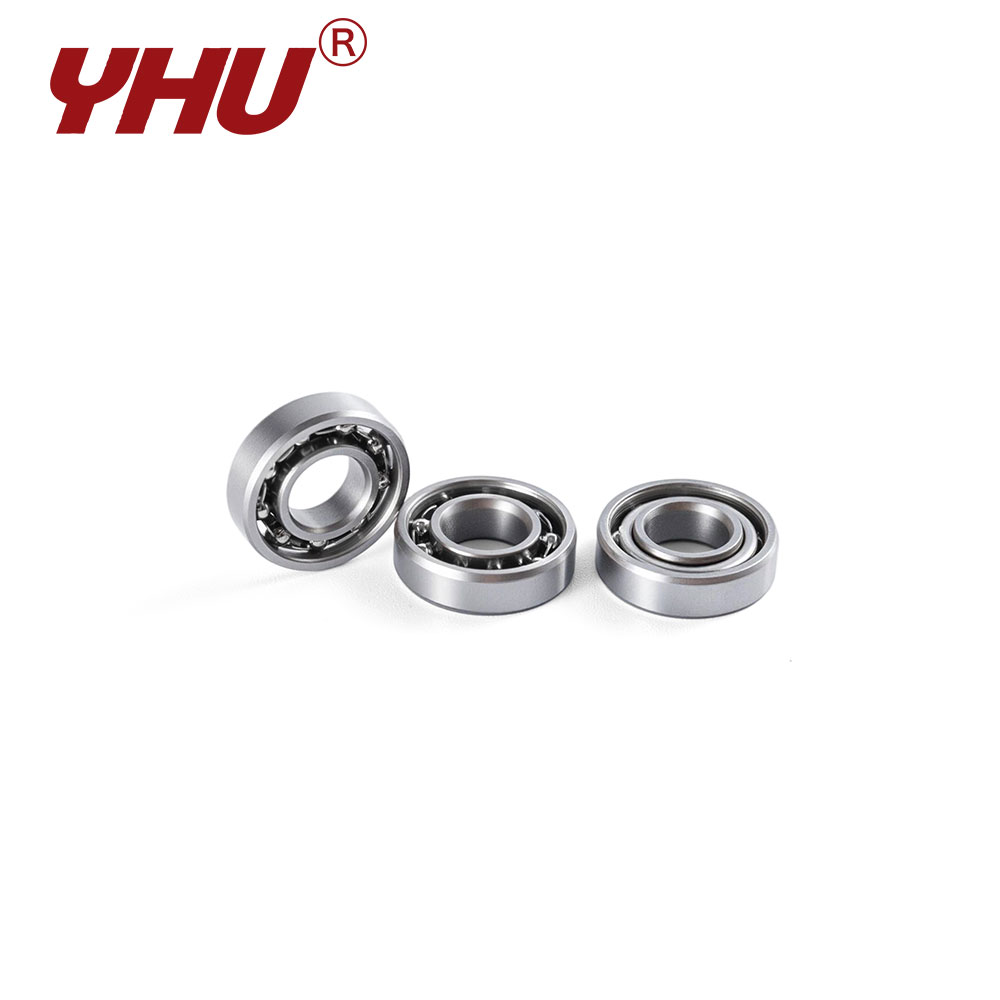

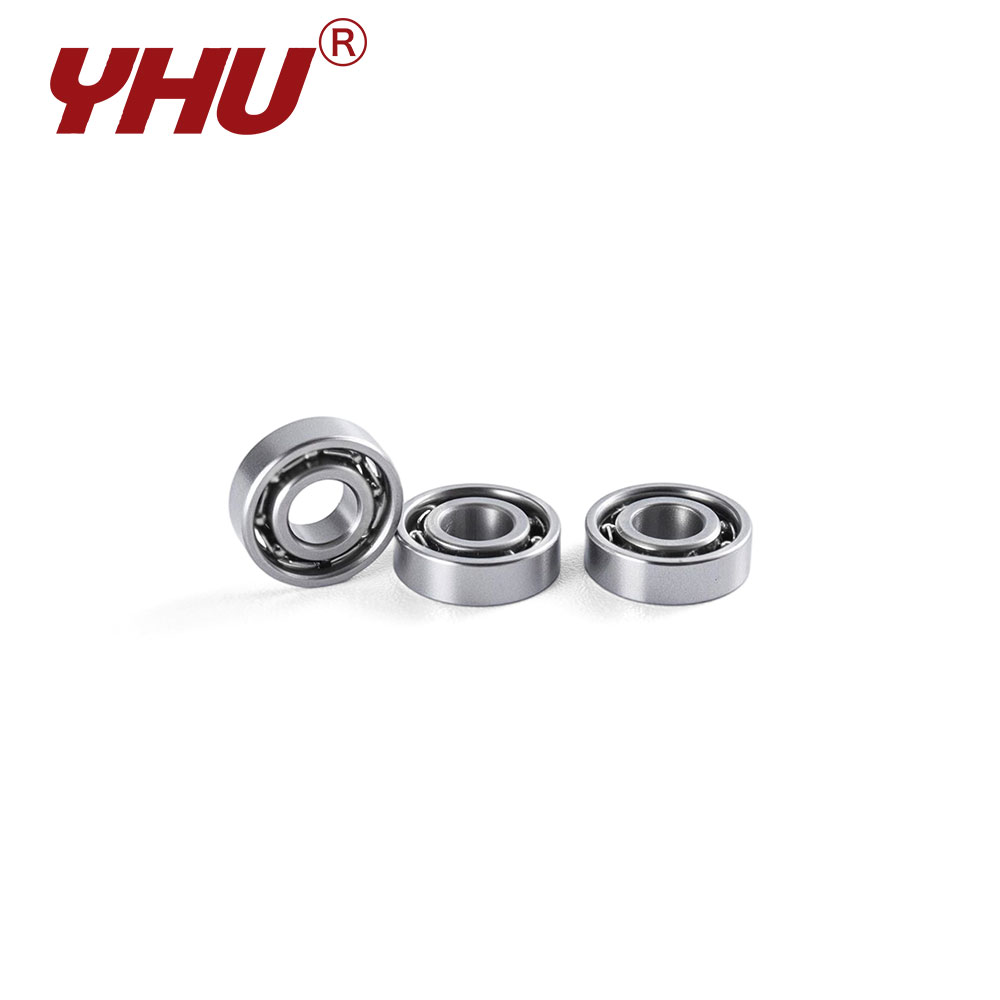

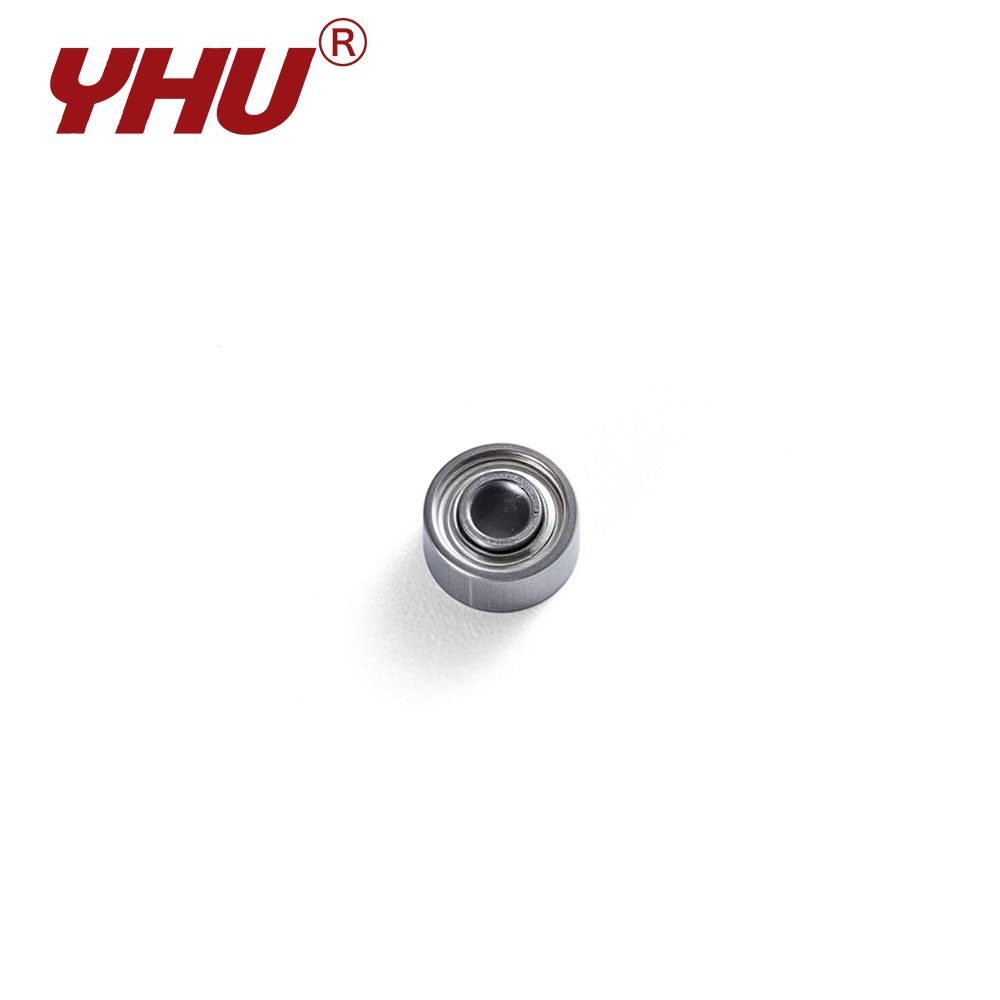

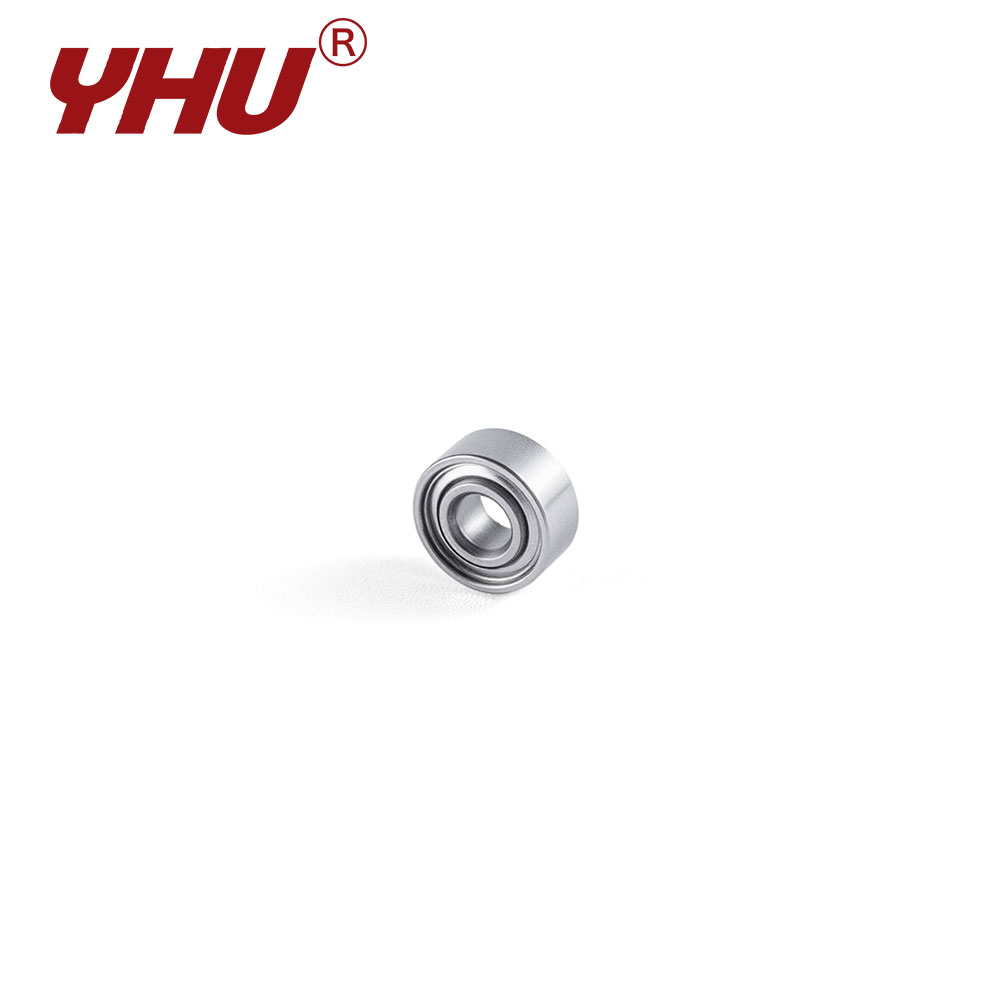

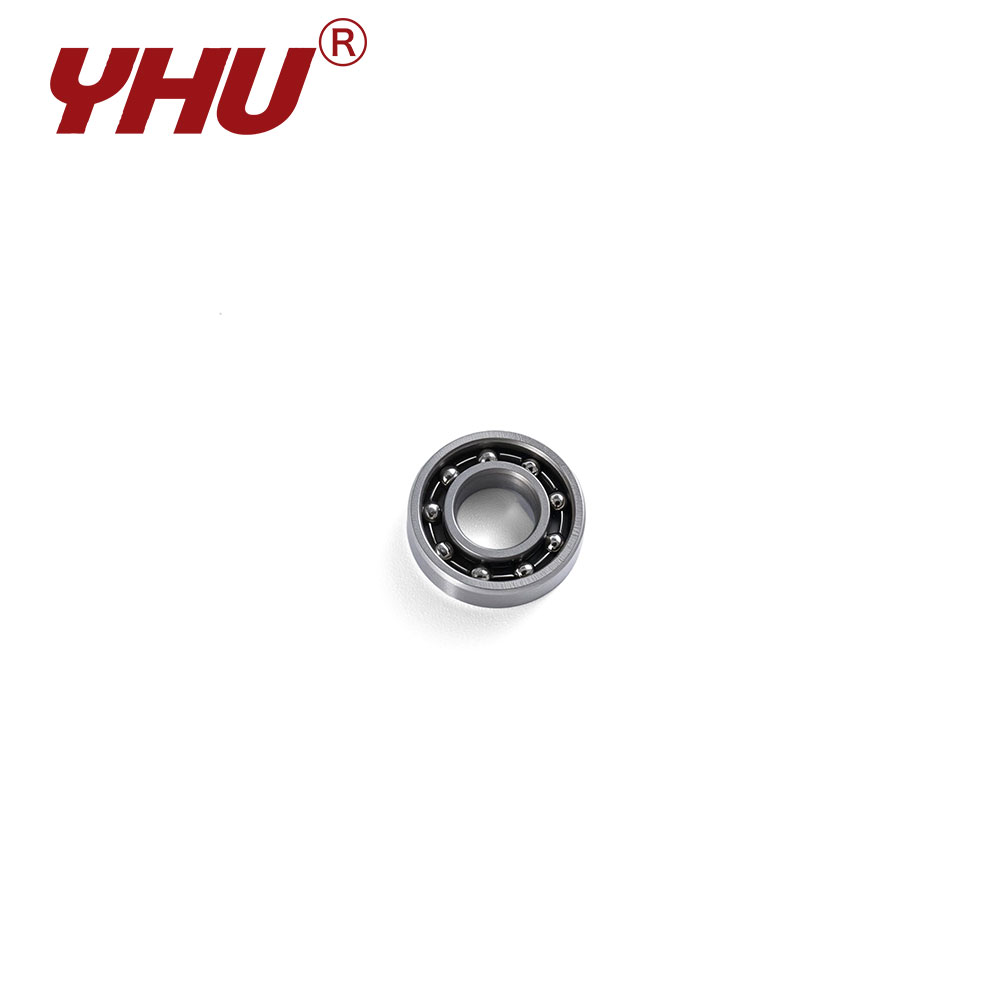

68 Series Miniature Deep Groove Ball Bearings

The core competitive advantage of this bearing series lies in its ultra-thin wall structure. Its inner diameter range spans tiny dimensions from 1 mm to 9 mm, enabling it to meet the installation requirements of a wide variety of miniaturized rotating devices.

Inquiry Us Now 68 Series Miniature Deep Groove Ball Bearings
PREV: No previous article
NEXT:60 Series Miniature Deep Groove Ball Bearings

Bearing Features

In terms of performance parameters, despite their slender profiles, these bearings maintain high precision and high limiting speeds. Even the Model 681—with an inner diameter of just 1 mm—demonstrates excellent limiting speed performance under oil-lubricated conditions. The internal raceways undergo precision grinding to ensure a low friction coefficient during high-speed operation, thereby minimizing heat generation and extending service life. Furthermore, the products strictly adhere to "zero defect" quality management standards, ensuring that every single bearing delivers reliable performance even under rigorous operating conditions.


Regarding application fields, this ultra-thin wall series is widely utilized in model aircraft, medical devices, precision instruments, and various types of miniature motors. In these sectors, the weight and volume of the bearings often directly impact the overall performance of the final product. By incorporating this bearing series, designers can further reduce equipment dimensions and achieve weight-reduction objectives, all while guaranteeing the precision and stability of the mechanical transmission system.

Technical Specifications

Bearing Reference Boundary Diameters Basic Dynamic Basic Static Limiting Speeds
Flange Open Shield d
mm		 D
mm		 Df
mm		 B
mm		 Bf
mm		 B1
mm		 Bf1
mm		 rsmin
mm		 Cr(kN) Cor(kN) Grease Oil
F 681 - 1 3 3.8 1 0.3 - - 0.05 0.074 0.02 16.5 18.5
F 682 ZZ 2 5 6.1 1.5 0.5 2.3 0.6 0.08 0.167 0.049 9.4 10.6
F 683 ZZ 3 7 8.1 2 0.5 3 0.8 0.1 0.314 0.108 6.6 7.4
F 684 ZZ 4 9 10.3 2.5 0.6 4 1 0.1 0.637 0.225 5.1 5.7
F 685 ZZ 5 11 12.5 3 0.8 5 1 0.15 0.715 0.284 4.1 4.6
F 686 ZZ 6 13 15 3.5 1 5 1.1 0.15 1.08 0.441 3.5 3.9
F 687 ZZ 7 14 16 3.5 1 5 1.1 0.15 1.18 0.51 3.1 3.5
F 688 ZZ 8 16 18 4 1 5 1.1 0.2 1.25 0.588 2.8 3.1
F 689 ZZ 9 17 19 4 1 5 1.1 0.2 1.32 0.666 2.5 2.8
