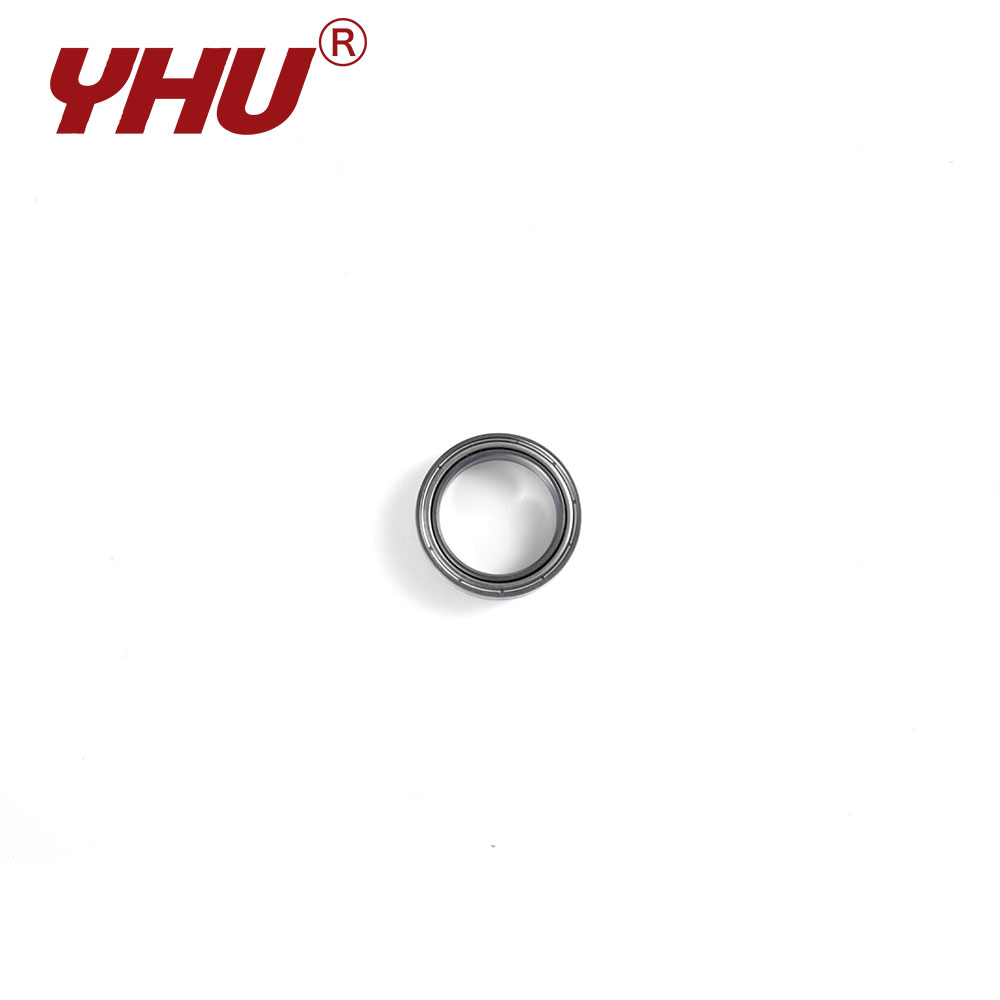

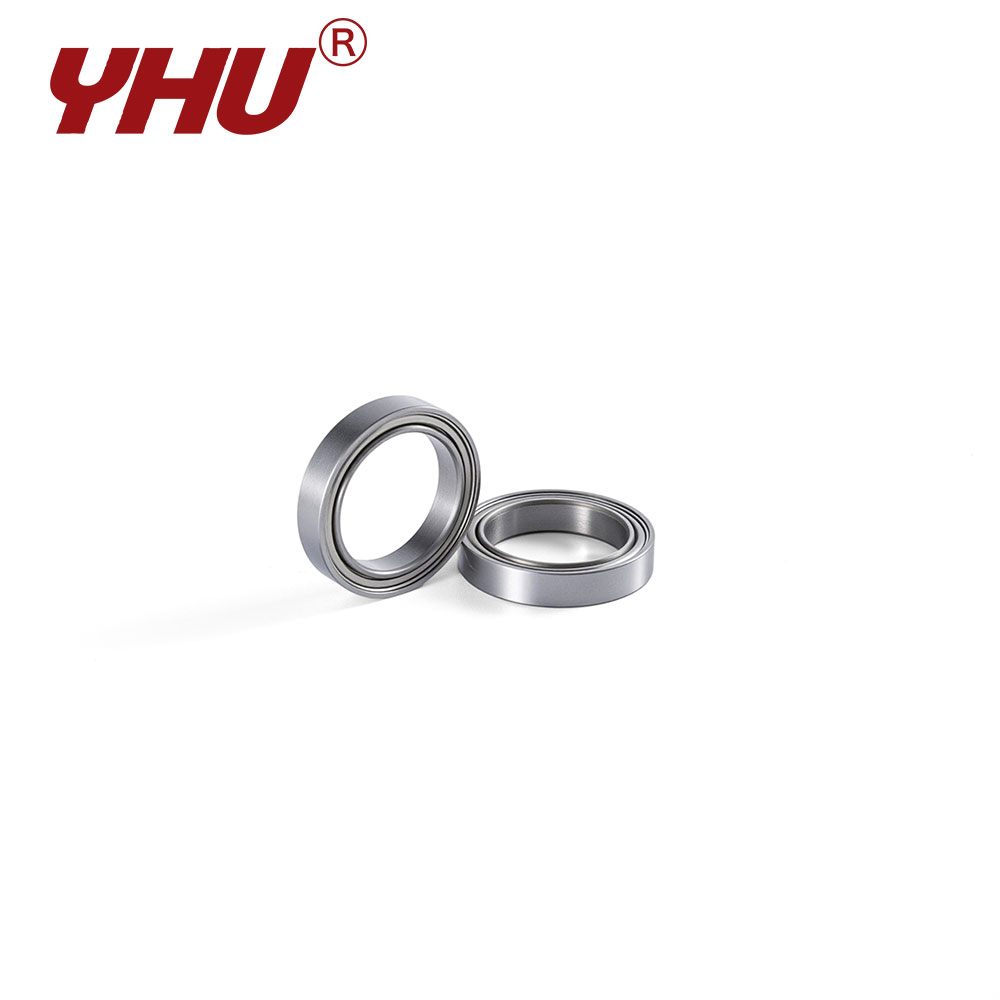

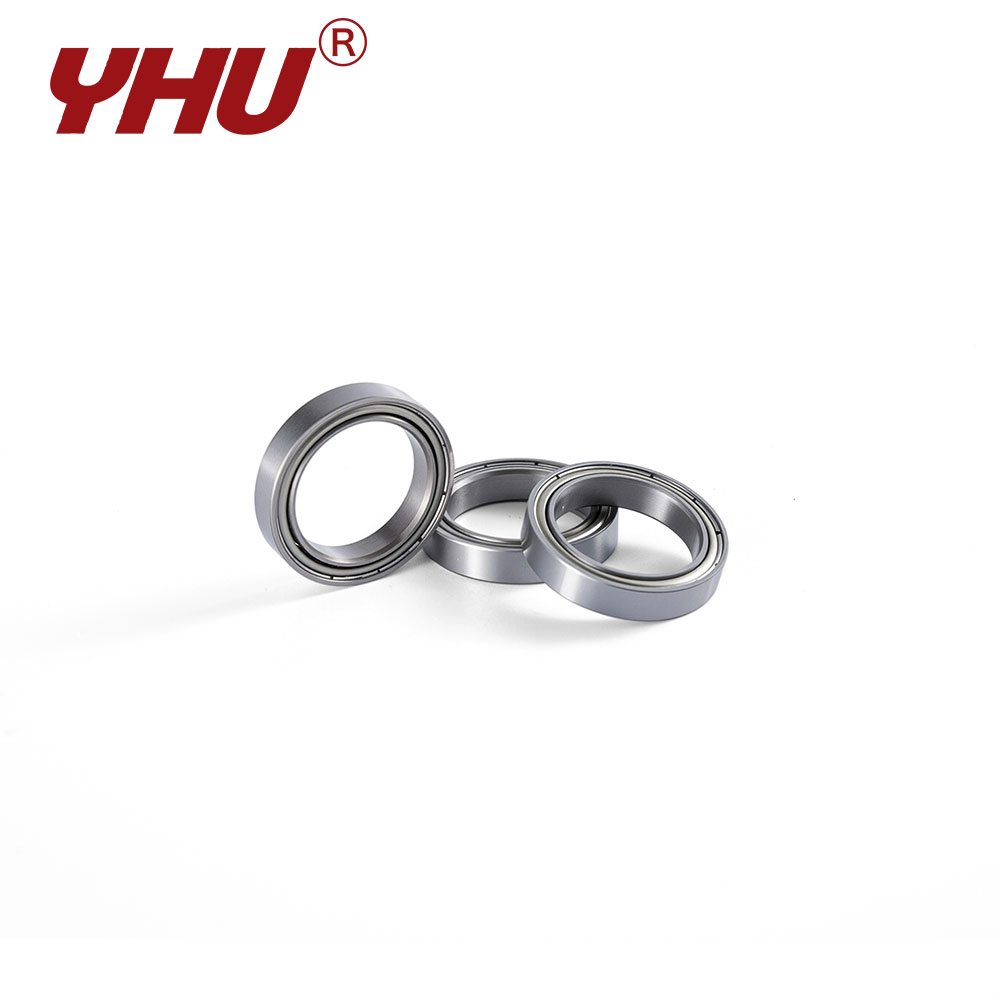

69 Series Thin-Section Deep Groove Ball Bearings

This series represents a highly versatile and widely utilized lightweight category within the realm of deep groove ball bearings. The product line offers a diverse range of models—spanning from the 6900 to the 6908 series—capable of accommodating steel balls of larger diameters.

Inquiry Us Now Jiangsu Yinghong Transmission Technology Co., Ltd.
PREV: No previous article
NEXT:68 Series Thin-Section Deep Groove Ball Bearings

Bearing Features

This design configuration serves to enhance both the dynamic and static load ratings of the bearing, while requiring only a marginal increase in installation space. By incorporating proven sealing mechanisms—such as open configurations, dust shields, or contact seals—the bearings effectively prevent lubricant leakage and block the ingress of external contaminants, thereby ensuring long-term, stable operation even under demanding working conditions. As a standardized, general-purpose series, it features high interchangeability, facilitating ease of maintenance and component replacement during the equipment's service life. Consequently, this series stands as the preferred component choice for a wide array of applications, including various power tools, household appliances (such as vacuum cleaners and washing machines), automotive components, small-to-medium-scale mechanical transmission systems, and textile machinery.

Technical Specifications

Bearing Reference  Boundary Diameters  Basic Dynamic  Basic Static  Limiting Speeds
Flange Open  Shield  seal d(mm) D(mm) Df(mm) B/B1(mm) Bf(mm) rsmin(mm) Cr(kN) Cor(kN) Grease  Oil
F 6900 ZZ 2RS 10 22 25 6 1.5 0.3 2.7 1.27 2.1 2.3
F 6901 ZZ 2RS 12 24 26.5 6 1.5 0.3 2.88 1.47 1.8 2.1
F 6902 ZZ 2RS 15 28 30.5 7 1.5 0.3 4.32 2.26 1.5 1.7
F 6903 ZZ 2RS 17 30 32.5 7 1.5 0.3 4.59 2.57 1.4 1.6
F 6904 ZZ 2RS 20 37 40 9 2 0.3 6.38 3.68 1.2 1.3
F 6905 ZZ 2RS 25 42 45 9 2 0.3 7 4.54 1 1.1
F 6906 ZZ 2RS 30 47 50 9 2 0.3 7.24 5.01 0.9 1
