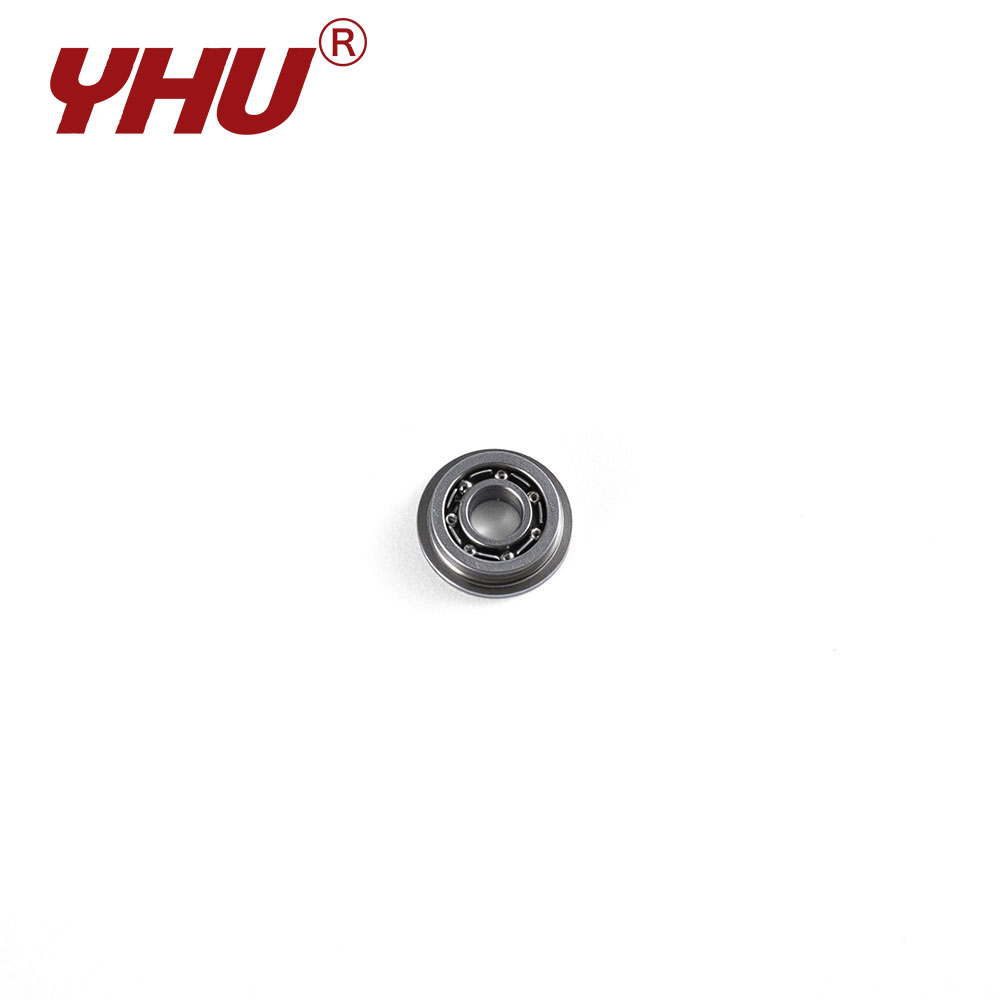

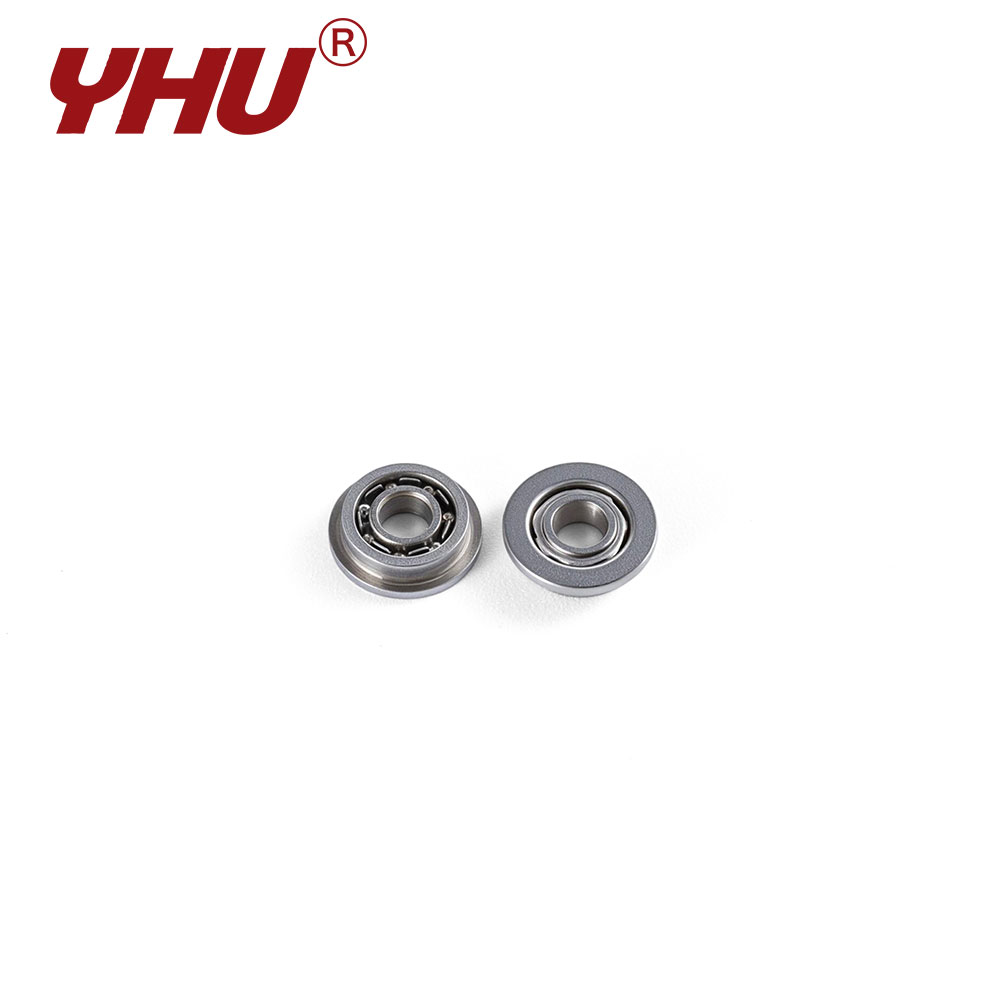

This is a standard flanged deep-groove ball bearing designed for applications involving balanced loads and moderate speeds. Compared to the thin-section series, the 62 series features deeper raceways and larger ball diameters, enhancing its radial load capacity and enabling it to withstand moderate bidirectional axial loads.
Bearing Features
The SUS420 material ensures resistance to deformation under heavy loads. The inclusion of a flange simplifies the machining of the housing bore; in industrial drive component design, only a simple through-hole is required, as the flanged bearing facilitates automatic alignment and secure mounting, thereby minimizing the impact of assembly errors on transmission efficiency. The martensitic microstructure of the SUS420 material ensures a long service life even under suboptimal lubrication conditions, offering exceptional fatigue resistance—particularly in automated production lines characterized by frequent start-stop cycles.
Technical Specifications
| Bearing Reference | Boundary Diameters | Basic Dynamic | Basic Static | Limiting Speeds | ||||||||||
| Flange | Open | Shield | d mm |
D mm |
Df mm |
B mm |
Bf mm |
B1 mm |
Bf1 mm |
rsmin mm |
Cr(kN) | Cor(kN) | Grease | Oil |
| F | SF623 | ZZ | 3 | 10 | 11.5 | 4 | 1 | 4 | 1 | 0.15 | 0.627 | 0.216 | 5.1 | 5.7 |
| F | SF624 | ZZ | 4 | 13 | 15 | 5 | 1 | 5 | 1 | 0.2 | 1.3 | 0.49 | 3.9 | 4.4 |
| F | SF625 | ZZ | 5 | 16 | 18 | 5 | 1 | 5 | 1 | 0.3 | 1.72 | 0.676 | 3.1 | 3.5 |
| F | SF626 | ZZ | 6 | 19 | 22 | 6 | 1.5 | 6 | 1.5 | 0.3 | 2.33 | 0.892 | 2.6 | 3 |
| F | SF627 | ZZ | 7 | 22 | 25 | 7 | 1.5 | 7 | 1.5 | 0.3 | 3.28 | 1.38 | 2.3 | 2.6 |
| F | SF628 | ZZ | 8 | 24 | - | 8 | - | 8 | - | 0.3 | 3.33 | 1.42 | 2.1 | 2.3 |
| F | SF629 | ZZ | 9 | 26 | - | 8 | - | 8 | - | 0.3 | 4.57 | 1.98 | 1.9 | 2.1 |
